Part Image

NCV7192D0R2G - onsemi

Description: Resistive Bridge Impedance: from 1kΩ to 25 kΩ; Differential Input Range from 2 mVpk/Vbdr to 125 mVpk/Vbdr; Integrated DSP to Compensate Bridge and Temperature Non-Linearity Using Polynomes; Calibration Interface over OUTX Pin; Low-noise Amplification Stage with Programmable Gain/Offset; Temperature Measurement with Bridge Impedance or Internal Junction Diode; Medium Temperature Measurement with External NTC; SENT Output According to the Standard SAE J2716 (April 2016); Analog Output Buffer Driven by a 14-bi

Download NCV7192D0R2G Model

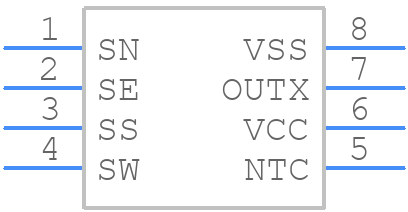

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7192D0R2G - onsemi PCB footprint - Other - Other - SOIC−8 NB CASE 751−07 ISSUE AK
click to zoom
3D Models
NCV7192D0R2G - onsemi  - 3D model - Other - SOIC−8 NB CASE 751−07 ISSUE AK
click to zoom

NCV7192D0R2G Details

  • Manufacturer Part Number:

    NCV7192D0R2G

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    onsemi

  • Interface IC Type:

    SIGNAL CONDITIONER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7192D0R2G Overview

Use the download button to access the NCV7192D0R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV71, or try a keyword search, such as Operational Amplifiers
