NCV7321D10R2G - onsemi

Description: ON Semiconductor NCV7321D10R2G, LIN Transceiver 20kbit/s 1-channel SAE J2602, 8-Pin SOIC

Download NCV7321D10R2G Model
Schematic

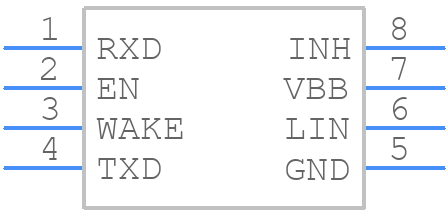

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7321D10R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom
3D Models
NCV7321D10R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom

NCV7321D10R2G Details

  • Manufacturer Part Number:

    NCV7321D10R2G

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV7321D10R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2x2 mm, using a 2-ounce copper layer, and ensuring a minimum of 10 mm clearance around the device to allow for airflow. Additionally, using thermal vias to connect the thermal pad to an internal copper plane can help to dissipate heat more efficiently.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the device's thermal derating guidelines, ensure good airflow around the device, and use a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a PCB material with a high thermal conductivity can also help to improve reliability.
  • The recommended input capacitor for the NCV7321D10R2G is a 10 uF ceramic capacitor with a voltage rating of 50 V or higher, and an ESR of less than 100 mΩ. The recommended output capacitor is a 22 uF ceramic capacitor with a voltage rating of 25 V or higher, and an ESR of less than 50 mΩ.
  • To troubleshoot issues with the device's overcurrent protection, check the input voltage and current levels to ensure they are within the recommended operating range. Verify that the output current is not exceeding the device's current limit, and check for any signs of overheating or thermal shutdown. Additionally, ensure that the device's overcurrent protection pin is properly connected and configured.
  • The recommended soldering profile for the NCV7321D10R2G involves a peak temperature of 260°C, with a dwell time of 30-60 seconds above 220°C. The device should be soldered using a reflow soldering process, and the soldering iron should be set to a temperature of 350-370°C.
