NCV7321D11R2G - onsemi

Description: LIN compliant to specification revision 2.x (backwards compatible to version 1.3) and J2602; Bus voltage ±45 V; Transmission rate 1 kbps to 20 kbps; Thermal shutdown; Indefinite short-circuit protection on pins LIN and WAKE towards supply and ground; Bus pins protected against transients in an automotive environment; Integrated slope control; Normal, Sleep and Stand-By modes

Download NCV7321D11R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

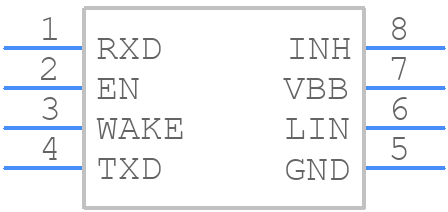

Symbol
NCV7321D11R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV7321D11R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom
3D Models
NCV7321D11R2G - onsemi - 3D model - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom

NCV7321D11R2G Details

  • Manufacturer Part Number:

    NCV7321D11R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • Country Of Origin:

    Philippines

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV7321D11R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from heat sources and ensure good airflow.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow. Also, consider derating the device's power dissipation according to the ambient temperature.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
  • Yes, the NCV7321D11R2G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended design and testing guidelines for these applications.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly decoupled and that the output capacitor is of sufficient value and type. Consult the datasheet and application notes for more information.
