Description:LIN compliant to specification revision 2.x (backwards compatible to version 1.3) and J2602; Bus voltage ±45 V; Transmission rate 1 kbps to 20 kbps; Thermal shutdown; Indefinite short-circuit protection on pins LIN and WAKE towards supply and ground; Bus pins protected against transients in an automotive environment; Integrated slope control; Normal, Sleep and Stand-By modes
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the PCB.
Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and consider using a heat sink with a high thermal conductivity. Also, follow the recommended operating conditions and derating guidelines.
The NCV7321MW2R2G has built-in ESD protection diodes, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is operated within the recommended voltage and current ranges, and avoid voltage spikes or transients.
Yes, the NCV7321MW2R2G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions, and consider additional testing and validation for your specific application.
Use a systematic approach to troubleshoot, starting with a review of the PCB layout, component selection, and soldering quality. Check for voltage and current stresses, thermal issues, and ensure that the device is operated within the recommended conditions. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7321MW2R2G Overview

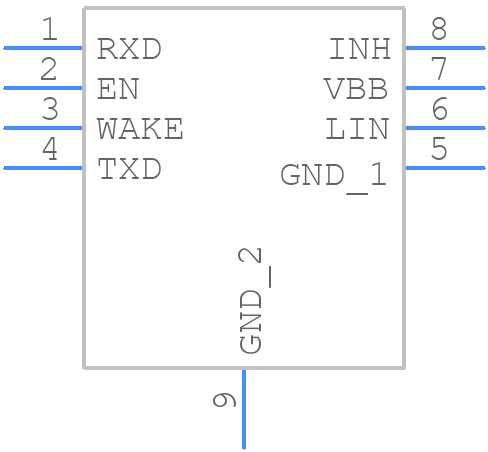

Use the download button to access the NCV7321MW2R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV73,
or try a keyword search, such as Network Interfaces
