NCV7329D10R2G - onsemi

Description: LIN−Bus Transceiver ♦ Compliant to ISO 17987−4 (Backwards Compatible to LIN Specification rev. 2.x, 1.3) and SAE J2602 ♦ Bus Voltage ?42 V ♦ Transmission Rate 1 kbps to 20 kbps ♦ TxD Timeout Function ♦ Integrated Slope Control; Protection ♦ Thermal Shutdown ♦ Undervoltage Protection ♦ Bus Pins Protected Against Transients in an Automotive Environment; Modes ♦ Normal Mode: LIN Transceiver Enabled, Communication via the Bus is Possible ♦ Sleep Mode: LIN Transceiver Disabled, the Consumption from VBB is Minimi

Download NCV7329D10R2G Model

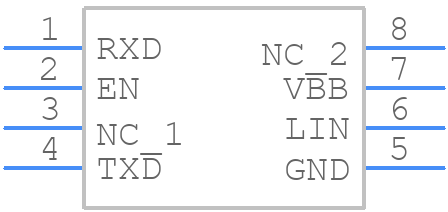

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7329D10R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV7329D10R2G
click to zoom
3D Models
NCV7329D10R2G - onsemi  - 3D model - Small Outline Packages - NCV7329D10R2G
click to zoom

NCV7329D10R2G Details

  • Manufacturer Part Number:

    NCV7329D10R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.8

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV7329D10R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from heat sources and ensure good airflow.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow. Also, consider derating the device's power handling at high temperatures.
  • The maximum allowed voltage transient on the input pins is 50 V for a duration of 100 ms, with a repetition rate of 10 Hz.
  • Yes, the NCV7329D10R2G is qualified to AEC-Q100, which makes it suitable for high-reliability applications such as automotive systems.
  • Use a TVS diode or a zener diode on the input pins to protect against voltage transients. Also, ensure that the device is operated within its recommended operating conditions.
