Part Image

NCV7343D20R2G - onsemi

Description: ISO 11898-2:2016 Compatible; CAN FD Timing Specified up to 5 Mbps; Low-power Standby and Sleep Mode; VIO Pin for Digital Signals Logic Level Adaptation; High Impedance Bus Lines in Unpowered State; Extended Bus Load Range; CAN Wake-up with Wake-up Pattern (WUP); INH Pin; Thermal Protection; Local Wake-up with Input Filter; Bus Error Detection; Transmit Data (TxD) Dominant Timeout Function; Bus Pins Short Circuit Protection; AEC-Q100 Grade 0 Qualified and PPAP Capable; ESD Robustness of Bus Pins > 8 kV

Download NCV7343D20R2G Model

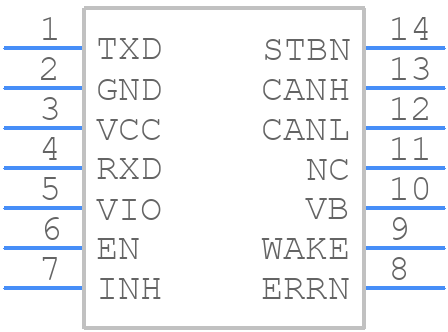

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7343D20R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
NCV7343D20R2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

NCV7343D20R2G Details

  • Manufacturer Part Number:

    NCV7343D20R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV7343D20R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. Ensure that the PCB layout follows the recommended land pattern and keep the thermal pads connected to a solid ground plane.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement proper thermal management, such as heat sinks or thermal interfaces, to keep the junction temperature below the maximum rating.
  • The device has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and wrist straps to prevent damage.
  • Yes, the NCV7343D20R2G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within the recommended operating conditions and follow the recommended design and testing guidelines.
  • Use a systematic approach to troubleshoot issues, starting with checking the power supply, input signals, and output loads. Verify that the device is operated within the recommended conditions and follow the recommended application guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7343D20R2G Overview

Use the download button to access the NCV7343D20R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV73, or try a keyword search, such as Network Interfaces
