Description:Compliant with ISO 11898−2:2016; CAN FD timing specified up to 5 Mbps; VIO pin on NCV7344−3 Version Allowing Direct Interfacing with 3 V to 5 V Microcontrollers; Very Low Current Standby Mode with Wake−up via the Bus; Low Electromagnetic Emission (EME) and High Electromagnetic Immunity; Very Low EME without Common−mode (CM) Choke; No Disturbance of the Bus Lines with an Un−powered Node; Transmit Data (TxD) Dominant Timeout Function; Under All Supply Conditions the Chip Behaves Predictably; Very High ESD Rob
A good PCB layout for the NCV7344AMW0R2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
To ensure the NCV7344AMW0R2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is properly heatsinked, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
Exceeding the maximum junction temperature of the NCV7344AMW0R2G can lead to reduced lifespan, decreased performance, and even permanent damage to the device. It can also cause the device to enter thermal shutdown, which can affect the overall system reliability.
Yes, the NCV7344AMW0R2G is suitable for high-reliability applications. It is built with high-quality materials and undergoes rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the NCV7344AMW0R2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly heatsinked and that the PCB layout is correct. Use an oscilloscope to check for any unusual voltage or current waveforms. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7344AMW0R2G Overview

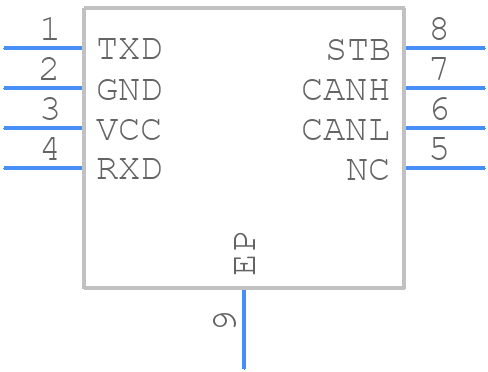

Use the download button to access the NCV7344AMW0R2G schematic symbol, PCB footprint, and 3D model.
