Description:Fully Compatble with J2411 Single Wire CAN Specification; 60 uA max sleep current; 100 kbps high speed mode capable; Operating voltage range 5.0 to 27 V; 40 kbps bus speed; Selective BUS wake up; 3.3 V and 5 V compatible logic inputs; Inhibit pin to control external voltage regulators; Standby to sleep mode timeout; Fully integrated receiver filter; Loss of ground protection; Bus donminant timeout; Undervoltage lockout; Bus terminals proof against short circuits and transients
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from onsemi provides additional recommendations.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device temperature within the recommended range.
The NCV7356D1R2G has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within the recommended voltage and current ranges, and avoid applying excessive voltage or current to the device.
Yes, the NCV7356D1R2G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended operating conditions and ensure that the device is used within the specified temperature range.
Follow the recommended soldering and assembly procedures outlined in the datasheet and onsemi's application notes. Ensure that the device is handled and stored properly to prevent damage, and use a soldering profile that meets the recommended temperature and time specifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7356D1R2G Overview

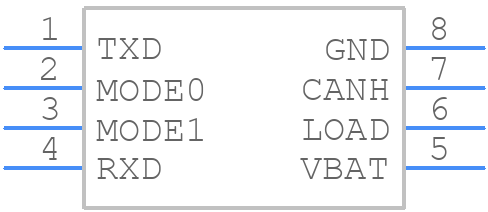

Use the download button to access the NCV7356D1R2G schematic symbol, PCB footprint, and 3D model.
