Part Image

NCV7356D2R2G - onsemi

Description: IC: CAN transceiver; 5÷27VDC; CAN bus; SMD; SO14; Ch: 1; reel,tape

Download NCV7356D2R2G Model

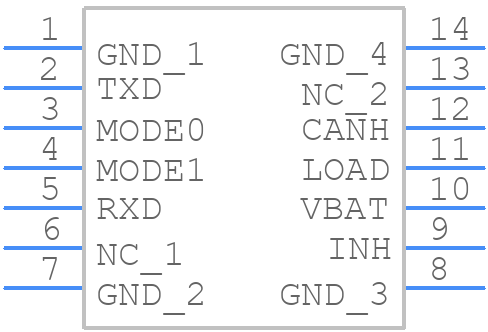

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7356D2R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB
click to zoom
3D Models
NCV7356D2R2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB
click to zoom

NCV7356D2R2G Details

  • Manufacturer Part Number:

    NCV7356D2R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    6.37

  • Data Rate:

    100 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV7356D2R2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV7356D2R2G is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
  • The recommended input capacitor value for the NCV7356D2R2G is 10uF to 22uF, with a voltage rating of 25V or higher.
  • The output current capability of the NCV7356D2R2G can be calculated using the formula: IOUT = (VIN - VOUT) / RDS(ON). Where VIN is the input voltage, VOUT is the output voltage, and RDS(ON) is the on-state resistance of the internal MOSFET.
  • The EN (Enable) pin on the NCV7356D2R2G is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and the output voltage is regulated. When the EN pin is pulled low, the device is disabled and the output voltage is turned off.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7356D2R2G Overview

Use the download button to access the NCV7356D2R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV73, or try a keyword search, such as Network Interfaces
