Description:Compliant with ISO 11898−2:2016; CAN FD Timing Specified up to 5 Mbps; VIO Pin on NCV7357−3 Version for Digital Signals Logic Level Adaptation; Transmit Data (TxD) Dominant Timeout Function; Very High ESD Robustness of Bus Pins, >8 kV System ESD Pulses; Thermal Protection; Bus Pins Short Circuit Proof to Supply Voltage and Ground; AEC-Q100 Grade 0 Qualified and PPAP Capable; Low Current, Listen Only Silent Mode; Low Electromagnetic Emission (EME) and High Electromagnetic Immunity; Very Low EME without Commo
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
The NCV7357D10R2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
Yes, the NCV7357D10R2G is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q100 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the expected behavior, verify the PCB layout and component selection, and use a current probe or oscilloscope to measure the current and voltage waveforms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7357D10R2G Overview

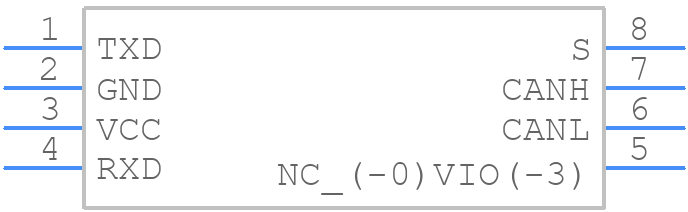

Use the download button to access the NCV7357D10R2G schematic symbol, PCB footprint, and 3D model.
