Description:Compliant with ISO 11898−2:2016; CAN FD Timing Specified up to 5 Mbps; VIO Pin on NCV7357−3 Version for Digital Signals Logic Level Adaptation; Transmit Data (TxD) Dominant Timeout Function; Very High ESD Robustness of Bus Pins, >8 kV System ESD Pulses; Thermal Protection; Bus Pins Short Circuit Proof to Supply Voltage and Ground; AEC-Q100 Grade 0 Qualified and PPAP Capable; Low Current, Listen Only Silent Mode; Low Electromagnetic Emission (EME) and High Electromagnetic Immunity; Very Low EME without Commo
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a thermal interface material (TIM) between the device and the heat sink. Also, follow the recommended operating temperature range and derate the device accordingly.
The NCV7357MW3R2G has built-in ESD protection diodes. However, it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is operated within the recommended voltage and current ranges, and avoid voltage spikes or transients.
Yes, the NCV7357MW3R2G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions, and consider additional testing and validation for your specific application.
Use a systematic approach to troubleshoot the issue, checking for proper power supply, input voltage, and output current. Verify that the device is operated within the recommended specifications, and check for any signs of overheating or physical damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7357MW3R2G Overview

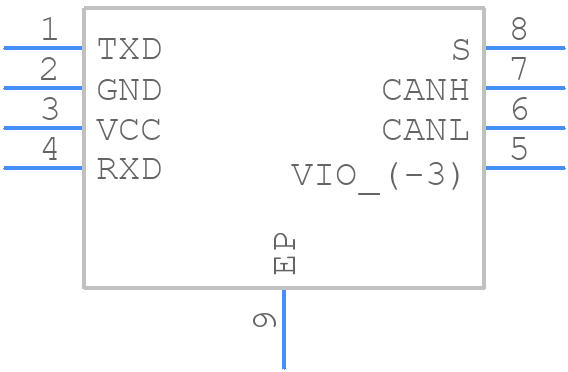

Use the download button to access the NCV7357MW3R2G schematic symbol, PCB footprint, and 3D model.
