Part Image

NCV7383DB0R2G - onsemi

Description: Compliant with FlexRay Electrical Physical Layer Specification Rev 3.0.1; FlexRay Transmitter and Receiver in Normal-Power Modes for Communication up to 10 Mbit/s; Support of 60 ns Bit Time; FlexRay Low-Power Mode Receiver for Remote Wake-up Detection; Excellent EMS Level Over Full Frequency Range. Very Low EME.; Bus Pins Protected Against >10 kV System ESD Pulses; Safe Behavior Under Missing Supply or No Supply Conditions; Interface Pins for a Protocol Controller and a Host (TxD, RxD, TxEN, STBN, BGE, ERRN

Download NCV7383DB0R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

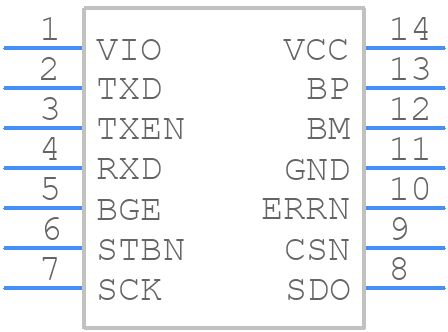

NCV7383DB0R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV7383DB0R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 14 CASE 948AE−01 ISSUE O
click to zoom
3D Models
NCV7383DB0R2G - onsemi - 3D model - Small Outline Packages - TSSOP 14 CASE 948AE−01 ISSUE O
click to zoom

NCV7383DB0R2G Details

  • Manufacturer Part Number:

    NCV7383DB0R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948AE

  • Country Of Origin:

    Philippines

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV7383DB0R2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV7383DB0R2G is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the FB pin and GND.
  • The recommended input capacitor value for the NCV7383DB0R2G is 10uF to 22uF, with a voltage rating of 25V or higher.
  • The output voltage of the NCV7383DB0R2G can be calculated using the following formula: Vout = 0.8V x (R1/R2) + 0.8V, where R1 and R2 are the resistors connected to the FB pin.
  • The maximum input voltage that the NCV7383DB0R2G can handle is 28V.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7383DB0R2G Overview

Use the download button to access the NCV7383DB0R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV73, or try a keyword search, such as Network Interfaces
