NCV7424DB0R2G - onsemi

Description: TSSOP16 Package. Pin-out Compatible with One Single LIN NCV7321 Transceiver (Pin Numbers 4 to 7, and 10 to 13); Compliant with LIN2.x, Backwards Compatible to Version 1.3 and J2602; Transmission Rate 1 kbps to 20 kbps; Indefinite Short-Circuit Protection on LIN towards Supply and Ground; Bus Pins Protected Against Transients in an Automotive Environment; Thermal Shutdown; System ESD on LIN Pin Exceeding 10 kV, No Need for External ESD Protections; Load Dump Protection (45 V); Integrated Slope Control Result

Download NCV7424DB0R2G Model
Schematic

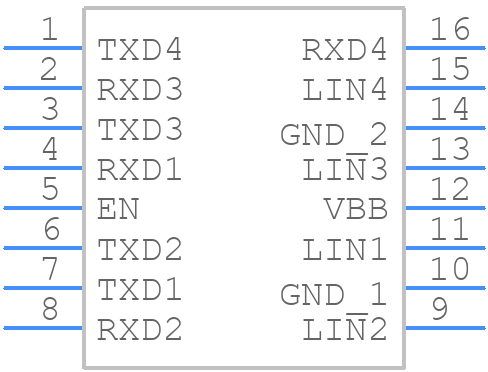

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7424DB0R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV7424DB0R2G
click to zoom
3D Models
NCV7424DB0R2G - onsemi  - 3D model - Small Outline Packages - NCV7424DB0R2G
click to zoom

NCV7424DB0R2G Details

  • Manufacturer Part Number:

    NCV7424DB0R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    6000 ns

  • Receiver Number of Bits:

    4

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    27 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    10000 ns

  • Width:

    4.4 mm

NCV7424DB0R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV7424DB0R2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV7424DB0R2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage or current stress, and provide adequate heat sinking to prevent overheating.
  • Not using a bypass capacitor with the NCV7424DB0R2G can lead to instability, noise, and oscillations in the output voltage. This can cause the device to malfunction or even fail. It is recommended to use a suitable bypass capacitor to filter out high-frequency noise and ensure stable operation.
  • The NCV7424DB0R2G is rated for operation up to 150°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked, and the junction temperature is within the recommended range.
  • To troubleshoot issues with the NCV7424DB0R2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and configured. Use an oscilloscope to check for noise, oscillations, or other anomalies in the output voltage. Consult the datasheet and application notes for guidance on troubleshooting common issues.
