Description:3.3 V or 5 V VOUT Supply depending on the Version from a Low−drop Voltage Regulator; LIN Transceiver; Protection and Monitoring Functions; These are Pb−Free Devices; Control Logic
A good PCB layout for the NCV7428D13R2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing a capacitor between the input and output can help reduce EMI.
To ensure the NCV7428D13R2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended specifications.
The NCV7428D13R2G has a thermal resistance of 30°C/W. To ensure proper thermal management, use a heat sink or thermal pad, and ensure good airflow around the device. Avoid blocking the airflow around the device and keep the ambient temperature below 85°C.
Yes, the NCV7428D13R2G is suitable for high-reliability applications. It is built with high-reliability materials and has undergone rigorous testing to ensure its performance and longevity. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the NCV7428D13R2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Use an oscilloscope to check for voltage spikes or oscillations, and consult the datasheet for troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7428D13R2G Overview

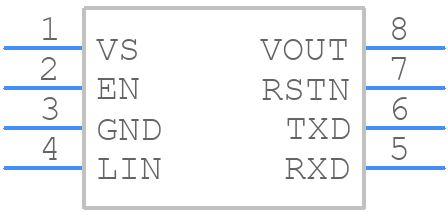

Use the download button to access the NCV7428D13R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV74,
or try a keyword search, such as Other Telecom ICs
