A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any components or traces.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and avoid overheating the device. Also, ensure that the PCB is designed to withstand high temperatures, and that all components are rated for the operating temperature range.
The NCV7544MWTXG has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device pins or handling the device by the pins, and use a anti-static bag or packaging when storing the device.
Yes, the NCV7544MWTXG is suitable for use in high-reliability or safety-critical applications. It's designed and manufactured to meet the requirements of automotive and industrial applications, and it's qualified to AEC-Q100 and IATF 16949 standards. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the NCV7544MWTXG, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Check the PCB layout and assembly for any errors or defects, and verify that the device is properly powered and configured. Use a logic analyzer or oscilloscope to debug the device's behavior, and consult the onsemi support resources or contact their technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7544MWTXG Overview

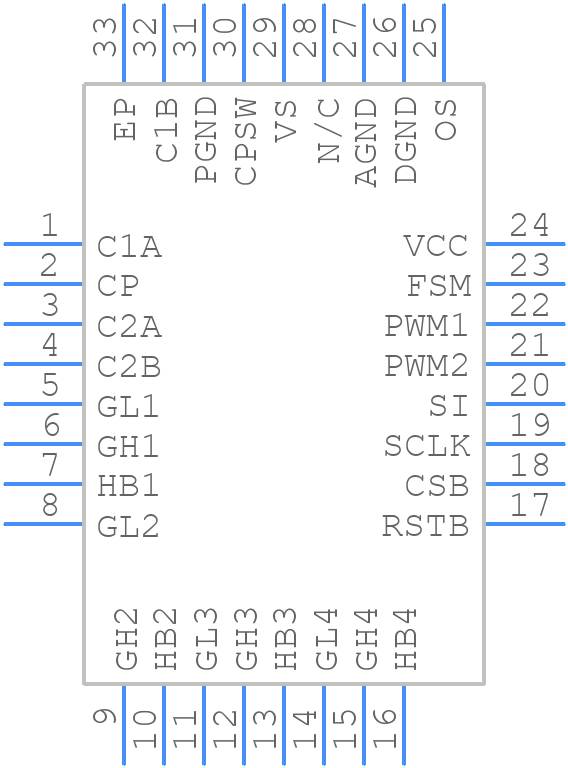

Use the download button to access the NCV7544MWTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV75,
or try a keyword search, such as MOSFET Drivers
