The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
Using a different capacitor value for the output filter can affect the stability and transient response of the regulator. It's recommended to use the recommended capacitor value and type to ensure optimal performance and stability.
Yes, the NCV76124MW0R2G is suitable for battery-powered applications due to its low quiescent current and high efficiency. However, it's essential to consider the device's power dissipation and thermal performance in the specific application.
To troubleshoot issues with the device's enable pin, check the voltage level on the pin, ensure it's within the recommended range, and verify that the pin is not being driven by multiple sources. Also, check the device's datasheet for specific enable pin requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV76124MW0R2G Overview

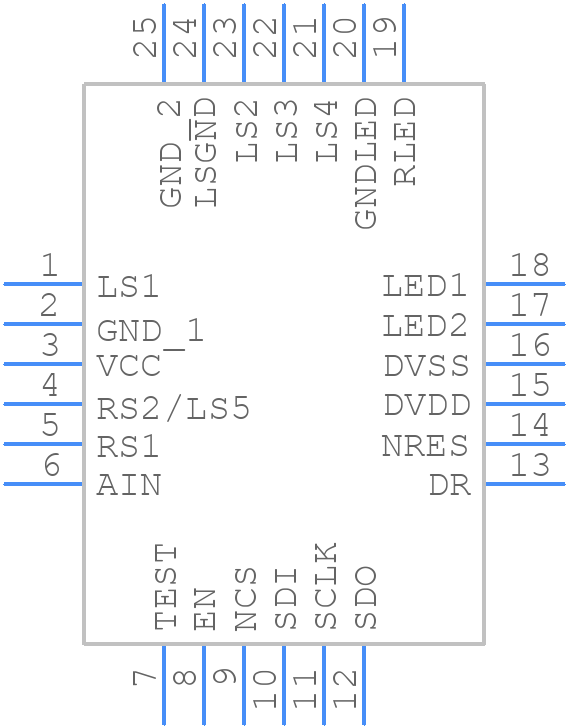

Use the download button to access the NCV76124MW0R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV76,
or try a keyword search, such as Other Sensors/Transducers
