NCV7694MW0R2G - onsemi

Description: Open LED Diagnostic Detection; Short LED to GND and VS Detection; External Resistor Defining max ON time; External Resistor Defining min OFF time; Protection against Short to Ground and Open of the External Resistors; Detection and Protection Against Under−Voltage and over Temperature; AEC−Q100 Qualified and PPAP Capable; ASIL−A safety design, ISO26262 compliant; 10 Pin Packaging with Wettable Flank for Enhanced Optical Inspection; Safety Feature Prevent Being ON too long; Safety Feature Prevent Being ON to

Download NCV7694MW0R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

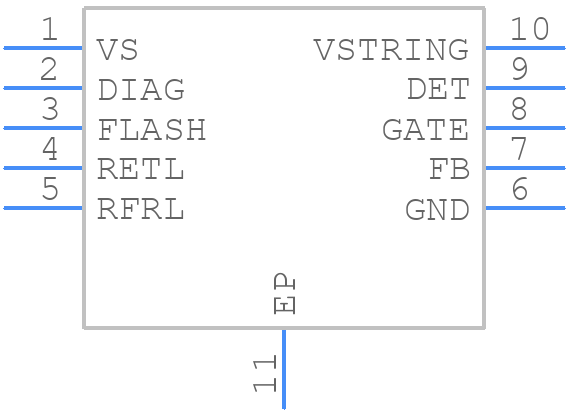

NCV7694MW0R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV7694MW0R2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW10, 3x3, 0.5P CASE 507AG ISSUE B
click to zoom
3D Models
NCV7694MW0R2G - onsemi - 3D model - Small Outline No-lead - DFNW10, 3x3, 0.5P CASE 507AG ISSUE B
click to zoom

NCV7694MW0R2G Details

  • Manufacturer Part Number:

    NCV7694MW0R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-10

  • Manufacturer Package Code:

    507AG

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
