A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
The NCV7703CD2R2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the expected behavior, verify that the sense resistor is properly connected, and ensure that the device is not overheating. If issues persist, consult with onsemi's technical support.
For high-reliability applications, consider using a redundant design, implementing fault detection and correction mechanisms, and following onsemi's recommended design and manufacturing guidelines. Additionally, ensure that the device is operated within its recommended specifications and that the system is designed to mitigate single-point failures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7703CD2R2G Overview

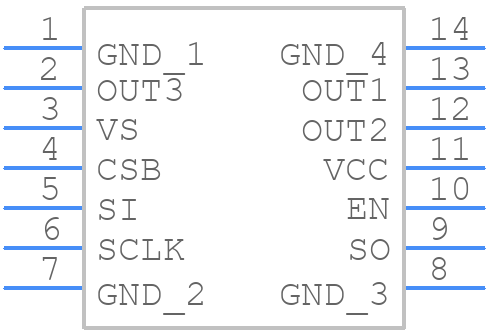

Use the download button to access the NCV7703CD2R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV77,
or try a keyword search, such as Motion Control Electronics
