Description:Multiplex Current Sense Analog Output for Advanced Load Monitoring ; Charge Pump Output to Control an External Reverse Polarity Protection MOSFET; Operating Range from 5.5 V to 28 V; Two High-Side and Two Low-Side Drivers Connected as Halfbridges - 2 Half−bridges Iload = 6 A; Rdson = 150 mΩ @ 25°C; Programmable Soft-start Function to Drive Loads with Higher Inrush Currents as Current Limitation Value; Support of PWM Control Frequency Outside the Audible Noise; Support of Active Freewheeling to Reduce Power
A good PCB layout for optimal thermal performance involves placing the device on a thermal pad, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the specified voltage, current, and temperature ranges to maintain its performance and longevity.
To troubleshoot OVP or UVP issues, start by verifying the input voltage and ensuring it's within the specified range. Check the device's pin connections and ensure they're correct. Use an oscilloscope to monitor the input voltage and device behavior. If the issue persists, consult the datasheet and application notes for guidance or contact onsemi support.
To minimize EMI and RFI, follow proper PCB layout and design guidelines, use a shielded enclosure, and ensure good grounding. Additionally, consider using EMI filters or common-mode chokes to reduce emissions. Consult the datasheet and application notes for specific guidance on EMI and RFI mitigation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7710DQBR2G Overview

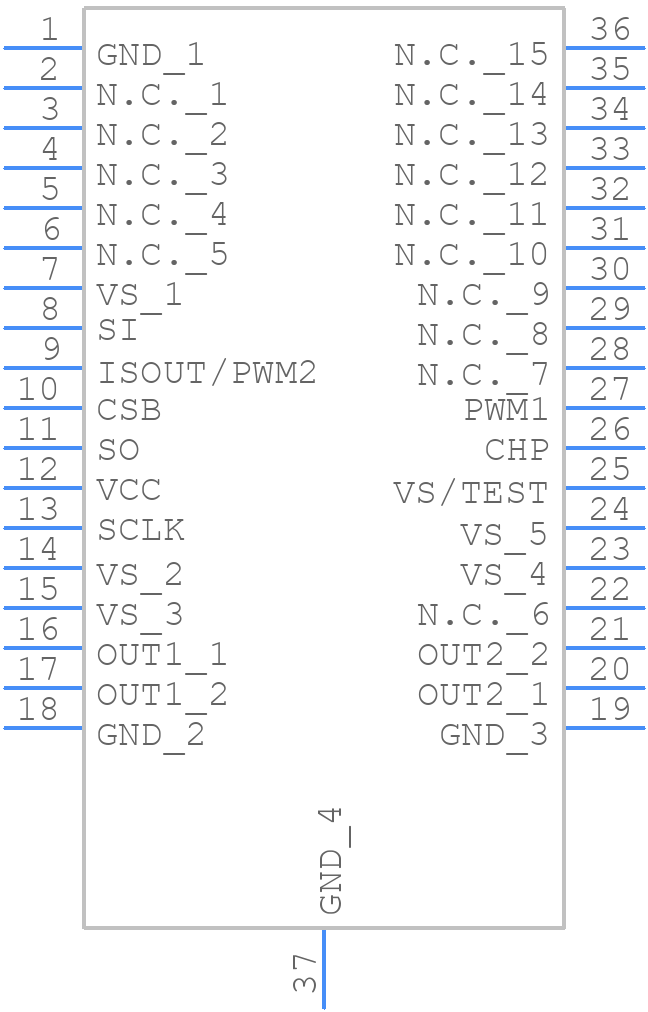

Use the download button to access the NCV7710DQBR2G schematic symbol, PCB footprint, and 3D model.
