A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
The device has internal ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
Yes, the device is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions, and consult with onsemi's application engineers for specific requirements.
Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 30s, and time above 183°C 120s. Use a solder with a melting point above 217°C, and ensure the device is not exposed to excessive thermal stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV78247DQ0R2G Overview

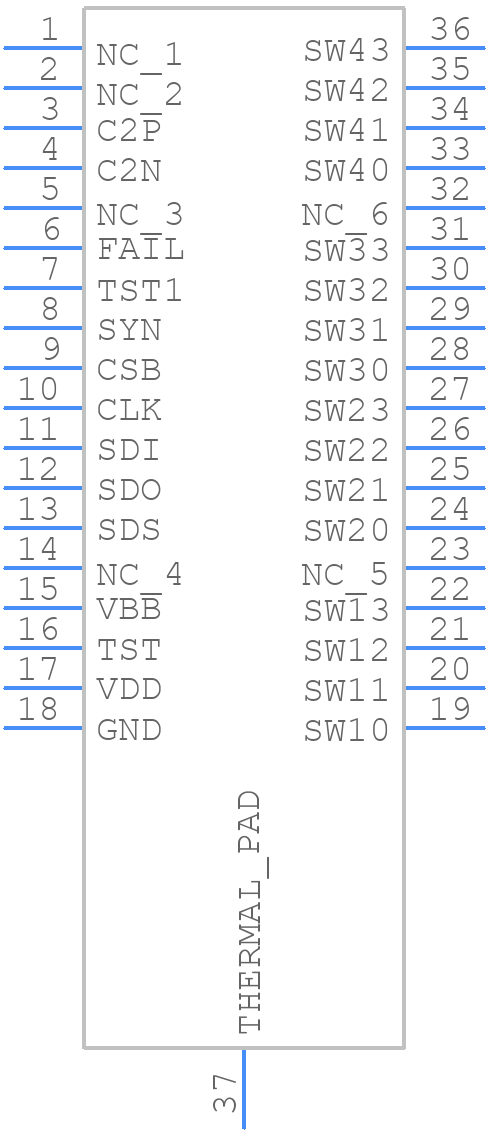

Use the download button to access the NCV78247DQ0R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV78,
or try a keyword search, such as Display Drivers
