Description:Single Chip Compatible with IMS Board (Single Layer); 12 Integrated Switches with Multiple Configuration Options; Minimum of External Components; Communication Interfaces to the Pixel Light ECU via; Integrated M−LVDS; UART over CAN Interface; Integrated Bridge between M−LVDS and UART; Supports up to 32 Devices, 1Mbaud; No Need for Local MCU and Precise Clock; Interface to External I2C EEPROM; Integrated 8 bit Analog to Digital Converter; Dimming Controller; PWM + Phase Shift Unit per Channel; Over Temp Prot
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The critical parameters to monitor during operation to prevent overheating include the device temperature, output current, and input voltage. It's essential to implement over-temperature protection, over-current protection, and under-voltage lockout to prevent damage to the device.
When selecting input and output capacitors, consider the device's operating frequency, output current, and input voltage. Choose capacitors with low ESR, high ripple current capability, and a voltage rating that exceeds the maximum input voltage. X7R or X5R ceramic capacitors are recommended for their high reliability and low temperature coefficient.
The recommended soldering conditions for this device include a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that meets the IPC J-STD-020 standard. For rework, use a low-temperature soldering iron and a solder wick to remove excess solder, and avoid applying excessive heat or force to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV78343DQ0R2G Overview

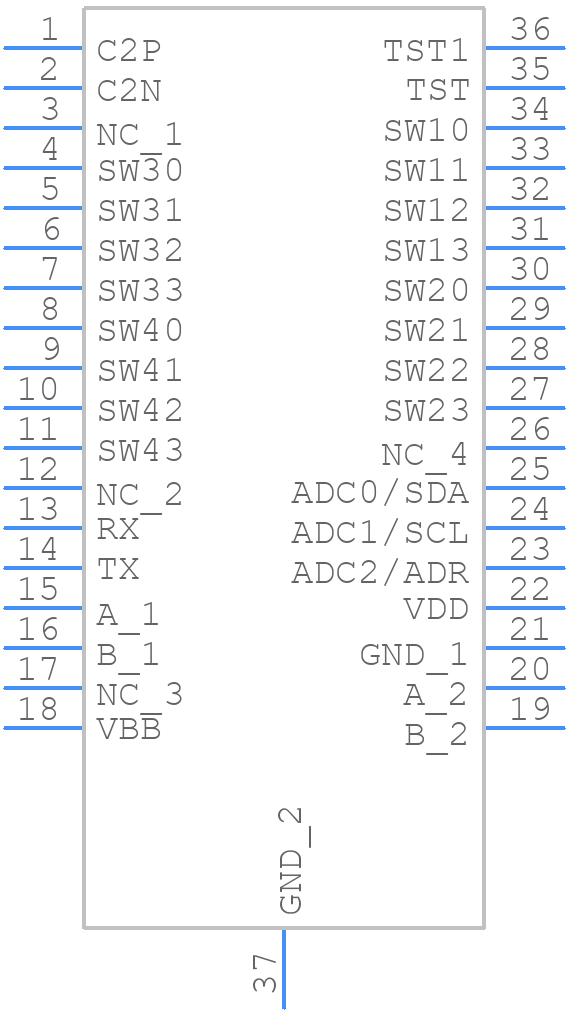

Use the download button to access the NCV78343DQ0R2G schematic symbol, PCB footprint, and 3D model.
