Description:Two LED Strings up to 60 V; Single Chip Boost−Buck Solution; High Current Capability up to 1.6 A DC per Output; High Overall System Efficiency; Minimum of External Components; Active Input Filter with Low Current Ripple from Battery; Integrated Switched Mode Buck Current Regulator; Integrated Boost Current−mode Controller; Programmable Input Current Limitation; Average Current Regulation Through the LEDs; High Operating Frequencies to Reduce Inductor Sizes; Integrated PWM Dimming with Wide Frequency Range;
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling capability at high temperatures.
The NCV78763MW1R2G has built-in ESD protection diodes. However, it's still recommended to follow proper ESD handling procedures during assembly and use ESD-protective packaging. For latch-up prevention, ensure that the device is not exposed to excessive voltage or current, and use a latch-up immune design approach.
Yes, the NCV78763MW1R2G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions, and perform thorough testing and validation for your specific application.
Use a systematic approach to troubleshoot issues. Check the device's operating conditions, power supply, and PCB layout. Use oscilloscopes or logic analyzers to monitor the device's signals and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV78763MW1R2G Overview

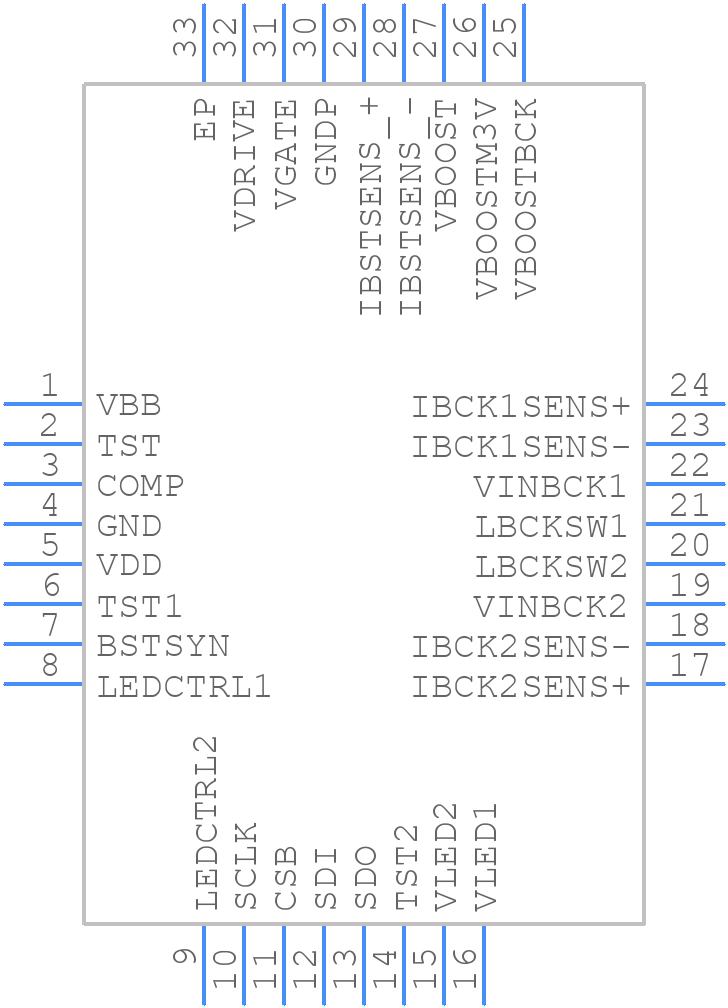

Use the download button to access the NCV78763MW1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV78,
or try a keyword search, such as Display Drivers
