NCV78935PA0R2G - onsemi

Description: High Efficiency Synchronous Triple Buck LED Driver for Automotive Front Lighting −0.3 66 V,30 mA,+500 V −45 160 °C

Download NCV78935PA0R2G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NCV78935PA0R2G model

Email notifications will be applied after download.

Send part feedback

Symbol

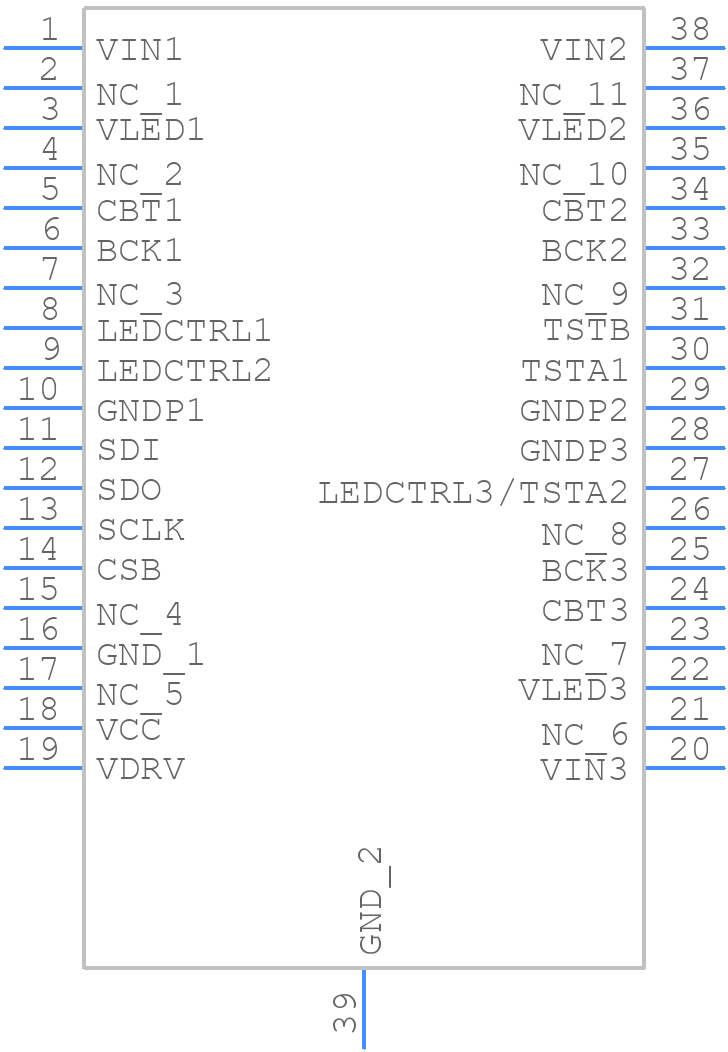

NCV78935PA0R2G - onsemi - PCB symbol

PCB Footprints

NCV78935PA0R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP38 EP 9.7x4.4 CASE 137AB ISSUE O

3D Models

NCV78935PA0R2G - onsemi - 3D model - Small Outline Packages - TSSOP38 EP 9.7x4.4 CASE 137AB ISSUE O

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCV78935PA0R2G
Part Number NCV78935PA0R2G
Manufacturer onsemi
Pin Count 39
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP38 EP 9.7x4.4 CASE 137AB ISSUE O
Released Date Jan 15, 2026
Last Modified Date Jan 15, 2026 12:41 PM UTC
Pinout / Pin List Click Here (Member Only)

NCV78935PA0R2G Details

Manufacturer Part Number:
NCV78935PA0R2G
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
Interface IC Type:
LED DISPLAY DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NCV78935PA0R2G Overview

Use the download button to access the NCV78935PA0R2G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NCV78, or try a keyword search, such as Display Drivers
