SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Current-Max:
3 mA
Supply Voltage-Max:
20 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
20 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.029 µs
Turn-on Time:
0.029 µs
Width:
3 mm
NCV81071BZR2G Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for proper connection and values. Also, verify that the device is operated within its specified input voltage range and that the output voltage is within the specified regulation range.
The recommended input voltage range for the NCV81071BZR2G is 7V to 18V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV81071BZR2G Overview

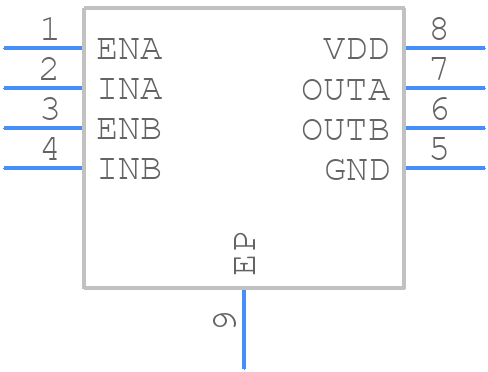

Use the download button to access the NCV81071BZR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV81,
or try a keyword search, such as MOSFET Drivers
