NCV8141D2TR4G footprint, schematic symbol and 3D model by onsemi

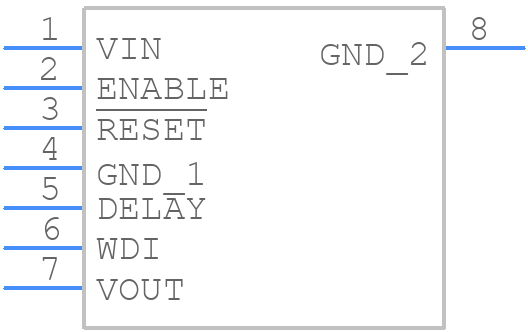

Symbol

click to zoom

PCB Footprints

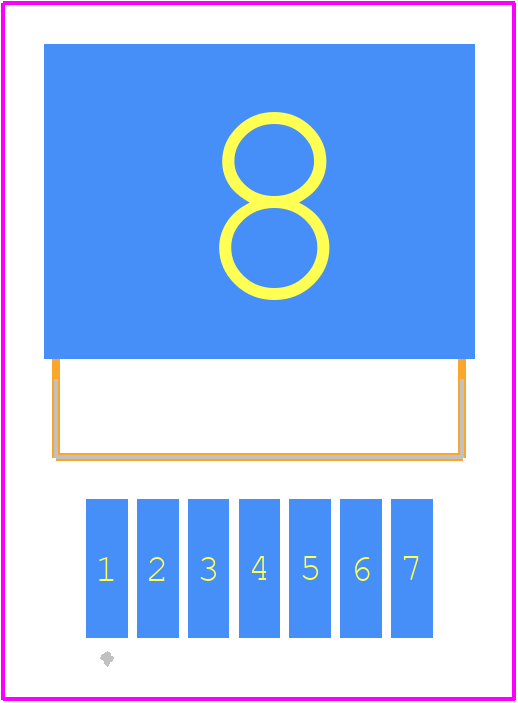

NCV8141D2TR4G - onsemi PCB footprint - Other - Other - D2PAK−7 (SHORT LEAD) CASE 936AB−01 ISSUE B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCV8141D2TR4G
Part Number NCV8141D2TR4G
Manufacturer onsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - D2PAK−7 (SHORT LEAD) CASE 936AB−01 ISSUE B
Released Date Nov 14, 2020
Last Modified Date Sep 19, 2024 2:45 PM UTC
Pinout / Pin List Click Here (Member Only)

NCV8141D2TR4G Details

Manufacturer Part Number:
NCV8141D2TR4G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
D2PAK-7 (Short Lead)
Package Description:
D2PAK-7
Pin Count:
7
Manufacturer Package Code:
936AB
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
0
Adjustability:
FIXED
Dropout Voltage1-Nom:
1.25 V
Input Voltage Absolute-Max:
26 V
Input Voltage-Max:
26 V
Input Voltage-Min:
7 V
JESD-30 Code:
R-PSSO-G7
JESD-609 Code:
e3
Length:
10.16 mm
Line Regulation-Max:
0.025%
Load Regulation-Max:
0.08%
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.5 A
Output Voltage1-Max:
5.15 V
Output Voltage1-Min:
4.85 V
Output Voltage1-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TO-263
Package Equivalence Code:
SMSIP7H,.55,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
4.82 mm
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
3%
Width:
8.89 mm

NCV8141D2TR4G Frequently Asked Questions (FAQs)

A good PCB layout practice is to keep the input and output traces separate, use a solid ground plane, and minimize the loop area of the input and output traces. Additionally, it's recommended to place the input and output capacitors close to the device pins.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended at the output.
The maximum ambient temperature range for the NCV8141D2TR4G is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to 85°C for optimal performance.
Yes, the NCV8141D2TR4G is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's recommended to follow the recommended operating conditions and PCB layout guidelines to ensure optimal performance and reliability.
To troubleshoot issues with the NCV8141D2TR4G, start by checking the input and output voltages, and ensure that the device is operating within the recommended operating conditions. Check for any signs of overheating, and verify that the PCB layout and component values are correct. If the issue persists, consult the datasheet and application notes for further guidance.
