NCV8164AMLADJTCG - onsemi

Description: 1.6V to 5.5V input voltage; PSRR: 85 dB at 1 kHz; Low VDO at 2.8V @80mV max dropout; WDFN6 2 mm x 2 mm, DFNW8 3 mm x 3 mm, and TSOP-5; Ultra-Low Noise: 9µVRMS; 150C operating Junction temperature

Download NCV8164AMLADJTCG Model

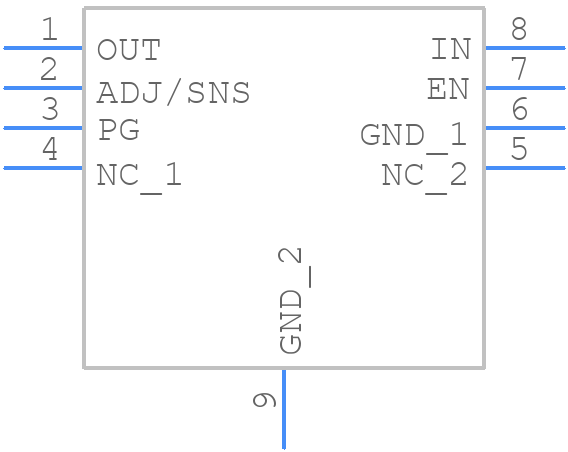

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8164AMLADJTCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P
click to zoom
3D Models
NCV8164AMLADJTCG - onsemi  - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P
click to zoom

NCV8164AMLADJTCG Details

  • Manufacturer Part Number:

    NCV8164AMLADJTCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Manufacturer Package Code:

    507AD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.224 V

  • Output Voltage1-Min:

    1.176 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV8164AMLADJTCG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
  • Use X5R or X7R ceramic capacitors with a voltage rating of 10V or higher for input and output capacitors. The recommended capacitance values are 10uF for input and 22uF for output.
  • Check the input voltage, output load, and feedback resistors for correct values and connections. Verify that the device is properly heatsinked and that the PCB layout is correct. Use an oscilloscope to measure the output voltage and check for oscillations or noise.
  • Yes, the NCV8164AMLADJTCG is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that the device is used within its recommended operating conditions and that the application meets the required safety and reliability standards.
