A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to avoid routing high-current traces under the device.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the device temperature within the recommended range.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection during handling and assembly, it's recommended to follow standard ESD precautions, such as using an ESD wrist strap, ESD mat, or ESD-safe packaging. Additionally, ensure that the device is handled in a controlled environment with minimal humidity and temperature fluctuations.
The recommended soldering conditions for the NCV8164CMTW290TAG involve using a soldering temperature of 260°C (max) for 10 seconds (max) and ensuring that the device is not exposed to temperatures above 240°C for more than 30 seconds. It's also recommended to use a soldering iron with a temperature-controlled tip and to avoid using excessive soldering force.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
NCV8164CMTW290TAG Overview

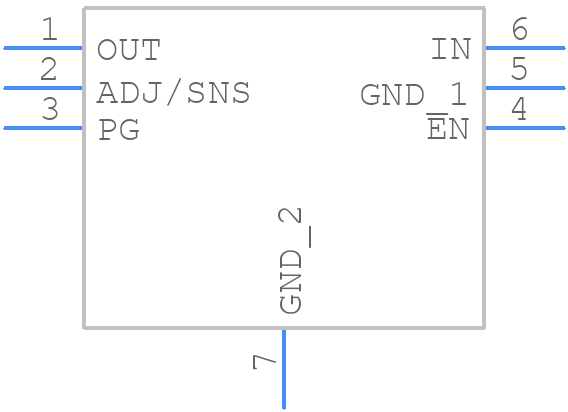

Use the download button to access the NCV8164CMTW290TAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV81,
or try a keyword search, such as Linear Regulator ICs
