NCV8186AMN330TAG - onsemi

Description: 1.8 V to 5.5 V Operating Input Voltage Range; Several Fixed Output Voltage Options and others available upon request in range from 1.2 V to 3.9 V; Low Quiescent Current of Typ. 90 µA; Very Low Dropout: 100 mV Typ. at Iout = 1 A (3.0V version); High 75 dB at 1 kHz PSRR; Internal Soft-Start; ±1.0% Accuracy in -40 to 85degC temperature range; Thermal Shutdown and Current Limit Protections; Stable with Small 1 µF Ceramic Capacitors

Download NCV8186AMN330TAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

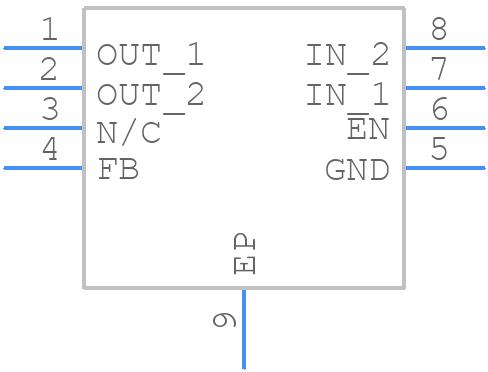

NCV8186AMN330TAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8186AMN330TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN 8 LEAD 2x2
click to zoom
3D Models
NCV8186AMN330TAG - onsemi - 3D model - Small Outline No-lead - DFN 8 LEAD 2x2
click to zoom

NCV8186AMN330TAG Details

  • Manufacturer Part Number:

    NCV8186AMN330TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    506AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.115 V

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.01221%

  • Load Regulation-Max:

    0.005%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.333 V

  • Output Voltage1-Min:

    3.267 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2 mm

NCV8186AMN330TAG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2x2 mm, using a 2-ounce copper layer, and ensuring a solid ground plane underneath the device. Additionally, it's recommended to use thermal vias to connect the thermal pad to the ground plane.
  • To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decouple the input and output pins with suitable capacitors to minimize noise and ripple.
  • Operating the device beyond the recommended temperature range can lead to reduced performance, increased power consumption, and potentially even device failure. It's essential to ensure the device operates within the specified temperature range to maintain reliability and performance.
  • To troubleshoot issues with the device, start by reviewing the application circuit and ensuring it meets the recommended design guidelines. Check for proper voltage and current supply, and verify that the device is properly biased. Use oscilloscopes or logic analyzers to monitor the device's input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, when designing with the NCV8186AMN330TAG, it's essential to consider EMI/EMC guidelines to ensure the device operates reliably in the presence of electromagnetic interference. Follow proper PCB layout practices, use shielding and filtering techniques, and ensure the device is properly decoupled to minimize EMI/EMC issues.
