NCV8187AMLE180TCG - onsemi

Description: Low Vin 1.5 V; Ultra Low Noise 15 µVrms; High PSRR 75 dB at 1 kHz; Low Vout from 0.8 V; Power Good Signal; Available in DFN6 2x2 mm and DFN8 3x3mm packages; 150C operating Junction temperature

Download NCV8187AMLE180TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

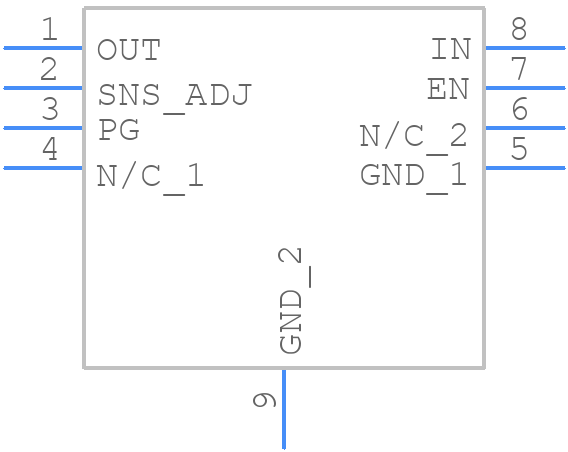

Symbol
NCV8187AMLE180TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8187AMLE180TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AD
click to zoom
3D Models
NCV8187AMLE180TCG - onsemi - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AD
click to zoom

NCV8187AMLE180TCG Details

  • Manufacturer Part Number:

    NCV8187AMLE180TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFNW8, 8-PIN

  • Manufacturer Package Code:

    507AD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.305 V

  • Dropout Voltage1-Nom:

    0.18 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    1.836 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,26

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

NCV8187AMLE180TCG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2x2 mm, using a 2-ounce copper layer, and ensuring a solid ground plane underneath the device. Additionally, it's recommended to use thermal vias to connect the thermal pad to the ground plane.
  • To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decouple the device with a 10uF capacitor in parallel with a 100nF capacitor to minimize noise and ripple.
  • The maximum allowed power dissipation for the NCV8187AMLE180TCG is 1.5W. However, it's recommended to derate the power dissipation based on the ambient temperature and the device's thermal resistance to ensure reliable operation.
  • The NCV8187AMLE180TCG is rated for operation up to 150°C. However, it's essential to consider the device's thermal resistance, power dissipation, and ambient temperature to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly biased and decoupled.
