NCV8187AMLE280TCG - onsemi

Description: Low Vin 1.5 V; Ultra Low Noise 15 µVrms; High PSRR 75 dB at 1 kHz; Low Vout from 0.8 V; Power Good Signal; Available in DFN6 2x2 mm and DFN8 3x3mm packages; 150C operating Junction temperature

Download NCV8187AMLE280TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

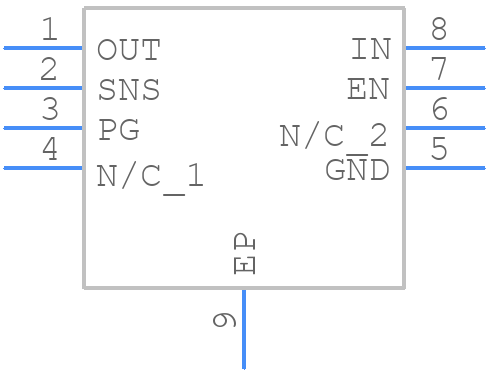

NCV8187AMLE280TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8187AMLE280TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AD ISSUE A
click to zoom
3D Models
NCV8187AMLE280TCG - onsemi - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AD ISSUE A
click to zoom

NCV8187AMLE280TCG Details

  • Manufacturer Part Number:

    NCV8187AMLE280TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFNW8, 8-PIN

  • Manufacturer Package Code:

    507AD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.225 V

  • Dropout Voltage1-Nom:

    0.15 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    2.856 V

  • Output Voltage1-Min:

    2.744 V

  • Output Voltage1-Nom:

    2.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,26

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

NCV8187AMLE280TCG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2x2 mm, using a 2-ounce copper layer, and ensuring a solid ground plane underneath the device. Additionally, it's recommended to use thermal vias to connect the thermal pad to the ground plane.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, including using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range. Additionally, consider using thermal interface materials and following proper soldering and assembly techniques.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within its specified temperature range to maintain its performance and lifespan.
  • To troubleshoot issues related to the device's overcurrent protection (OCP) feature, start by verifying that the input voltage and current are within the specified limits. Check for any signs of overheating, and ensure that the device is properly soldered and assembled. If the issue persists, consult the datasheet and application notes for guidance on OCP threshold and response time.
  • When using the NCV8187AMLE280TCG in a high-reliability or safety-critical application, consider the device's fault tolerance, redundancy, and fail-safe operation. Ensure that the device is properly derated, and that the system design includes adequate fault detection and correction mechanisms. Additionally, consult with onsemi's application engineers and follow relevant industry standards and guidelines.
