NCV84003FPAR2G - onsemi

Description: Intelligent Retry for Inrush Management; Analog Current Sense Output; Load Adaptive Slew Rate Control; Differentiated Fault Diagnostics Reporting; Dynamic and Absolute Thermal Shutdown; Direct Drive Communication; Over Voltage Protection Clamp; Under-Voltage Lockout; Fixed Over-Current Shutdown; Off State Open Load Detection with External Circuitry; AEC-Q100 Automotive Qualified and PPAP Capable; Safety Design ASIL B

Download NCV84003FPAR2G Model

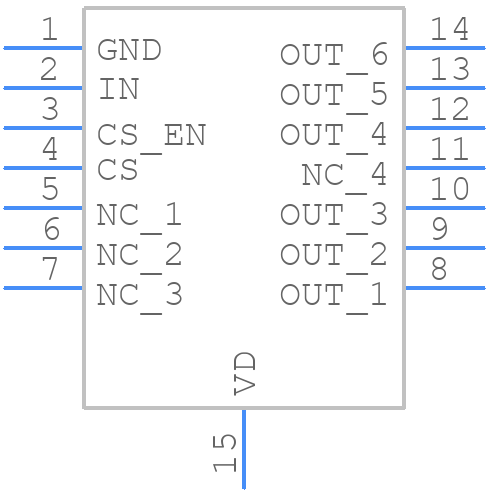

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV84003FPAR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 4.90x3.90x0.95, 0.65P CASE 948BZ ISSUE C-1
click to zoom

NCV84003FPAR2G Details

  • Manufacturer Part Number:

    NCV84003FPAR2G

  • Manufacturer:

    onsemi

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV84003FPAR2G Overview

Use the download button to access the NCV84003FPAR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV84, or try a keyword search, such as Power Management Circuits
