Description:Short Circuit Protection; Thermal Shutdown with Automatic Restart; Integrated Clamp for Inductive Switching; ESD Protection; dV/dt Robustness; Analog Drive Capability (Logic Level Input); AEC-Q101 Qualified; NCV Prefix for Automotive and Other Applications Requiring Site and Change Control
A good PCB layout for the NCV8402ADDR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the device to the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency signals.
To ensure stability, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure the inductor is properly selected and the PCB layout is optimized. Additionally, the device's compensation pin should be properly connected to the output capacitor. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the compensation pin and ground.
The NCV8402ADDR2G is rated for operation from -40°C to 150°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
Yes, the NCV8402ADDR2G is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the NCV8402ADDR2G, start by verifying the input voltage, output voltage, and current. Check the device's pin voltages and currents using an oscilloscope or a multimeter. Ensure the PCB layout is correct, and the components are properly soldered. If the issue persists, consult the datasheet and application notes or contact onsemi's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV8402ADDR2G Overview

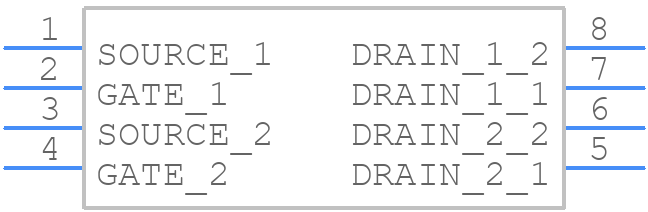

Use the download button to access the NCV8402ADDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV84,
or try a keyword search, such as Power Management Circuits
