NCV8502DADJR2G - onsemi

Description: 2.5V, 3.3V, 5.0V, 8.0V, 10.0V or Adjustable +/-2% Output Voltage / 150mA ouput current; Reset with Adjustable Delay Reset and Adjustable Threshold; Early Warning through Flag/Monitor Leads or General Use Comparator; Integrated protections: 60V Peak Transient Voltage -15V Reverse Voltage Short Circuit Protection Thermal Overload Protection; AEC Qualified; PPAP Capable; Pb-Free Packages are Available

Download NCV8502DADJR2G Model

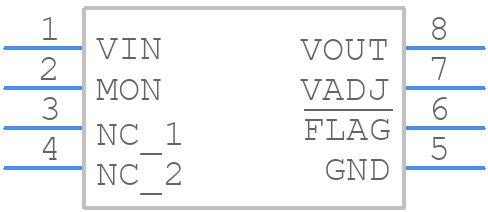

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8502DADJR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-1+
click to zoom
3D Models
NCV8502DADJR2G - onsemi  - 3D model - Small Outline Packages - SO-8-1+
click to zoom

NCV8502DADJR2G Details

  • Manufacturer Part Number:

    NCV8502DADJR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    41 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.4 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.2

  • Load Regulation-Max(%):

    2.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    1.318 V

  • Output Voltage1-Min:

    1.242 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

NCV8502DADJR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range, and that the PCB is designed to minimize thermal resistance. Also, consider using a heat sink or thermal pad to dissipate heat.
  • The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 25V or higher. The recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 25V or higher.
  • To troubleshoot issues with the device's output voltage, check the input voltage, output load, and output capacitor values. Ensure that the input voltage is within the recommended range, and that the output load is within the recommended current range. Also, check for any signs of overheating or thermal shutdown.
  • The recommended input voltage range for the NCV8502DADJR2G is 4.5V to 18V. Operating the device outside of this range may affect its performance and reliability.
