- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NCV86601BD33R2G
- Part Number NCV86601BD33R2G
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC-8 NB CAST 751-07
- Released Date Aug 24, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NCV86601BD33R2G Details
-
Manufacturer Part Number:
NCV86601BD33R2G
-
Brand Name:
ON Semiconductor
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Manufacturer Package Code:
751-07
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
NCV86601BD33R2G Frequently Asked Questions (FAQs)
-
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
-
Using a different capacitor value for the output filter can affect the stability and transient response of the regulator. A larger capacitor value can improve transient response but may compromise stability, while a smaller value can improve stability but may compromise transient response. It's essential to evaluate the trade-offs and perform simulations or experiments to determine the optimal capacitor value for the specific application.
-
To troubleshoot issues with the device's enable pin, check the voltage level on the enable pin, ensure it's within the recommended range, and verify that the pin is not being driven by multiple sources. Also, check the device's datasheet for any specific enable pin requirements or recommendations.
-
Using a different input capacitor value can affect the device's input impedance, noise filtering, and stability. A larger capacitor value can improve noise filtering but may compromise stability, while a smaller value can improve stability but may compromise noise filtering. It's essential to evaluate the trade-offs and perform simulations or experiments to determine the optimal capacitor value for the specific application.
Trust Checks
Community Provided
System Verified
Community Approved
NCV86601BD33R2G Overview

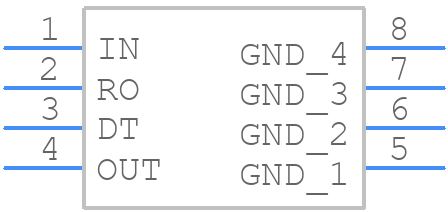

Use the download button to access the NCV86601BD33R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV86,
or try a keyword search, such as Linear Regulator ICs
