The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The recommended input capacitors are X5R or X7R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 50V. For output capacitors, use X5R or X7R ceramic capacitors with a minimum capacitance of 22uF and a voltage rating of 25V.
To troubleshoot issues with the device's enable pin, check the voltage level on the enable pin, ensure it's within the recommended range, and verify that the pin is not being pulled low by an external circuit. Also, check the device's datasheet for any specific enable pin requirements.
The recommended soldering profile for this device is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a ramp rate of 3°C/second. Consult the datasheet for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV86604BD50R2G Overview

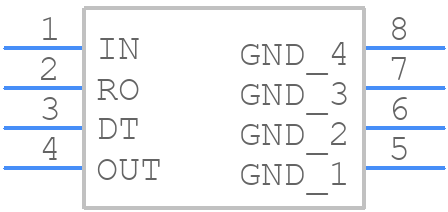

Use the download button to access the NCV86604BD50R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV86,
or try a keyword search, such as Linear Regulator ICs
