NCV8690MN33T2G - onsemi

Description: LDO Voltage Regulators LDO

Download NCV8690MN33T2G Model

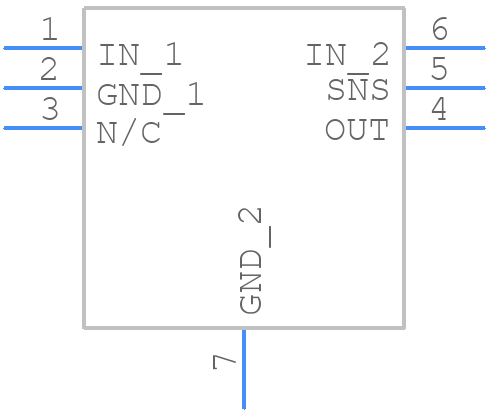

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8690MN33T2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6 3x3 CASE 506AH ISSUE O
click to zoom
3D Models
NCV8690MN33T2G - onsemi  - 3D model - Small Outline No-lead - DFN6 3x3 CASE 506AH ISSUE O
click to zoom

NCV8690MN33T2G Details

  • Manufacturer Part Number:

    NCV8690MN33T2G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.25 V

  • Dropout Voltage1-Nom:

    0.18 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.008%

  • Load Regulation-Max:

    0.035%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2.4 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm
