NCV8705ML33TCG - onsemi

Description: Operating Input Voltage Range: 2.5 V to 5.5 V; Adjustable Operation from 0.8V; Available in Fixed Voltage Output Options: 0.8 V to 3.5 V; Ultra-Low Noise: 12 uVrms from 100 Hz to 100 KHz; AEC-Q100 Qualified and PPAP Capable; Ultra-Low Quiescent Current of Typ. 13 u?A; Very Low Dropout: 230 mV Typical at 500 mA; High PSRR: 71 dB at 1 kHz

Download NCV8705ML33TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

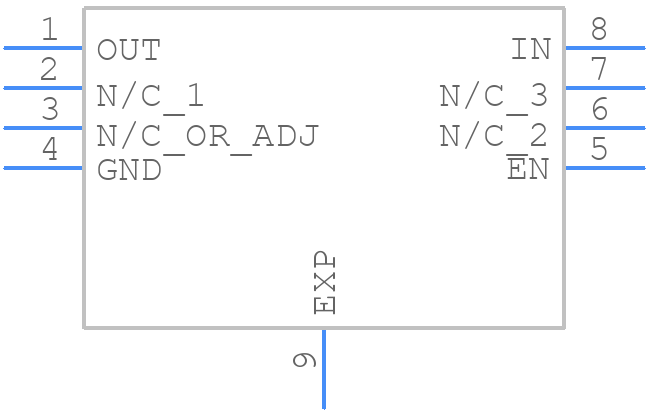

Symbol
NCV8705ML33TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8705ML33TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P_1
click to zoom
3D Models
NCV8705ML33TCG - onsemi - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P_1
click to zoom

NCV8705ML33TCG Details

  • Manufacturer Part Number:

    NCV8705ML33TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Manufacturer Package Code:

    507AD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2017-05-17

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

NCV8705ML33TCG Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the NCV8705ML33TCG includes a thermal pad connected to a large copper area on the PCB, with multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
  • To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a 10kΩ resistor. This enables the device. For shutdown, connect EN to GND. Additionally, ensure the input voltage (VIN) is within the recommended range (2.5V to 5.5V) and the output voltage (VOUT) is set to the desired value using the FB pin.
  • When selecting COUT, consider the output voltage ripple, output current, and stability. A minimum capacitance of 10μF is recommended, with a voltage rating of at least 1.5 times the output voltage. X5R or X7R ceramic capacitors are suitable options. Ensure the capacitor's ESR is within the recommended range (0.01Ω to 0.1Ω) to maintain stability.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component placement, and thermal management. Use an oscilloscope to monitor the output voltage and current. Verify the EN pin is properly biased and the FB pin is correctly configured. Consult the datasheet and application notes for guidance on specific issues.
  • The NCV8705ML33TCG is a high-current, low-dropout linear regulator with a wide input voltage range (2.5V to 5.5V) and adjustable output voltage (1.2V to 3.3V). It has a low quiescent current (IQ) and high power-supply rejection ratio (PSRR). Compared to other devices, the NCV8705ML33TCG offers a unique combination of high current capability, low dropout voltage, and low IQ.
