NCV8705MT33TCG - onsemi

Description: Operating Input Voltage Range: 2.5 V to 5.5 V; Adjustable Operation from 0.8V; Available in Fixed Voltage Output Options: 0.8 V to 3.5 V; Ultra-Low Noise: 12 uVrms from 100 Hz to 100 KHz; AEC-Q100 Qualified and PPAP Capable; Ultra-Low Quiescent Current of Typ. 13 u?A; Very Low Dropout: 230 mV Typical at 500 mA; High PSRR: 71 dB at 1 kHz

Download NCV8705MT33TCG Model

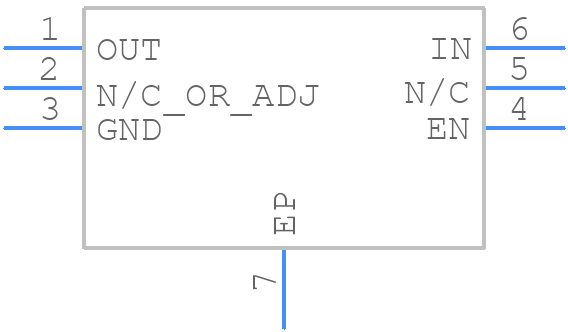

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8705MT33TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE C
click to zoom
3D Models
NCV8705MT33TCG - onsemi  - 3D model - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE C
click to zoom

NCV8705MT33TCG Details

  • Manufacturer Part Number:

    NCV8705MT33TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN6, 2x2, 0.65P

  • Pin Count:

    6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.35 V

  • Dropout Voltage1-Nom:

    0.23 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm
