- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NCV885300D1R2G
- Part Number NCV885300D1R2G
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC-8 NB
- Released Date May 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NCV885300D1R2G Details
-
Manufacturer Part Number:
NCV885300D1R2G
-
Brand Name:
ON Semiconductor
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
751-07
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
NCV885300D1R2G Frequently Asked Questions (FAQs)
-
The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 20mm x 20mm, and using multiple vias to connect the thermal pad to the ground plane. Additionally, keeping the thermal pad away from other heat sources and using a thermal interface material (TIM) can help to improve thermal performance.
-
To ensure reliable operation in high-temperature environments, it is recommended to follow the device's thermal derating guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, selecting components with a high temperature rating and using thermal interface materials can help to improve reliability.
-
The recommended input and output capacitors for the NCV885300D1R2G are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 25V or higher. The capacitors should be placed as close to the device as possible to minimize parasitic inductance and ensure stable operation.
-
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correctness. Verify that the output voltage is within the specified range and that the device is not overheating. Use an oscilloscope to check for oscillations or noise on the output voltage, and consult the datasheet for guidance on adjusting the feedback resistors to achieve the desired output voltage.
-
The maximum allowed voltage on the enable pin is 6V. Exceeding this voltage can damage the device. It is recommended to use a voltage divider or a buffer circuit to ensure that the enable pin voltage does not exceed 6V.
Trust Checks
Community Provided
System Verified
Community Approved
NCV885300D1R2G Overview

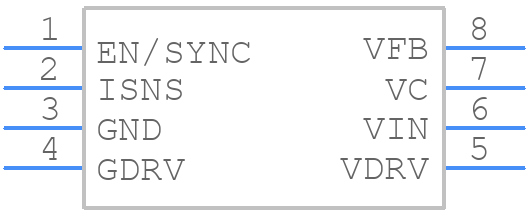

Use the download button to access the NCV885300D1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV88,
or try a keyword search, such as Switching Regulator or Controllers
