NCV898031D1R2G - onsemi

Description: Peak Current Mode Control with Internal Slope Compensation; 1.2 V 2% Reference Voltage; 2 MHz Fixed Frequency Operation; Wide Input Voltage Range of 3.2 V to 40 V, 45 V Load Dump; Input Undervoltage Lockout (UVLO); Internal Soft-Start; Low Quiescent Current in Sleep Mode; Cycle-by-Cycle Current Limit Protection; Hiccup-Mode Short-Circuit Protection (SCP); Thermal Shutdown (TSD)

Download NCV898031D1R2G Model

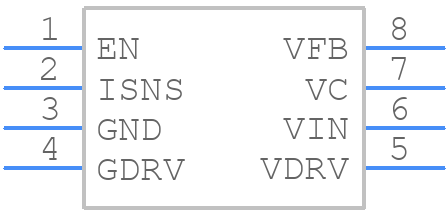

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV898031D1R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD, SOIC, JDEC-MS-012, 0.150" NARROW BODY_2022
click to zoom
3D Models
NCV898031D1R2G - onsemi  - 3D model - Small Outline Packages - 8-LEAD, SOIC, JDEC-MS-012, 0.150" NARROW BODY_2022
click to zoom

NCV898031D1R2G Details

  • Manufacturer Part Number:

    NCV898031D1R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    44 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    13.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV898031D1R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
  • To prevent ESD damage, it's recommended to handle the device by the body or in an ESD-protected environment. Use ESD-protected workstations, and ensure that all equipment and tools are properly grounded. During PCB assembly, use ESD-protective packaging and handling procedures.
  • Yes, the NCV898031D1R2G is AEC-Q100 qualified, which makes it suitable for automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards.
  • The recommended soldering conditions for the NCV898031D1R2G are: peak temperature of 260°C, soldering time of 10 seconds, and a soldering temperature profile that follows the IPC J-STD-020 standard.
