NCV97200MW01R2G - onsemi

Description: 1 Enabled Buck Converter; 1 Boost Converter for IVN Supply; Wide Input of 4.1 to 40 V with Undervoltage Lockout (UVLO); Fixed Frequency Operation at 2 MHz; Window Watchdog with Independent References; Cycle−by−cycle Current Limit Protection; External Frequency Synchronization; Pseudo−random Spread Spectrum for Improved EMI; QFN Package with Wettable Flanks (pin edge plating); NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP C

Download NCV97200MW01R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

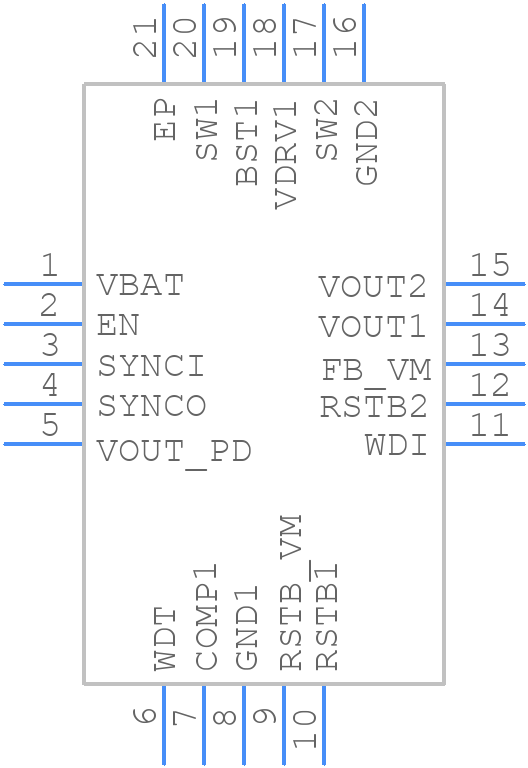

NCV97200MW01R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV97200MW01R2G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NCV97200MW01R2G
click to zoom
3D Models
NCV97200MW01R2G - onsemi - 3D model - Quad Flat No-Lead - NCV97200MW01R2G
click to zoom

NCV97200MW01R2G Details

  • Manufacturer Part Number:

    NCV97200MW01R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFNW-20

  • Package Description:

    QFNW-20

  • Manufacturer Package Code:

    484AD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-08-28

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCV97200MW01R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
  • The NCV97200MW01R2G has built-in ESD protection diodes. However, it's still recommended to follow proper ESD handling procedures during assembly and use ESD-protective packaging. For latch-up prevention, ensure that the device is not exposed to excessive voltage or current, and use a latch-up immune design approach.
  • Yes, the NCV97200MW01R2G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions, and perform thorough testing and validation for your specific application.
  • Use a thermal imaging camera to identify hotspots, and check for proper PCB layout, thermal interface material, and heat sink design. For malfunction, verify the input voltage, current, and operating frequency are within the recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines.
