- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NCX2220GU,115
- Part Number NCX2220GU,115
- Manufacturer NXP
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - HXSON8
- Released Date Jan 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NCX2220GU,115 Details
-
Manufacturer Part Number:
NCX2220GU,115
-
Source Url Status Check Date:
2013-06-14 00:00:00
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DFN
-
Package Description:
1.35 X 1.7 MM, 0.5 MM HEIGHT, PLASTIC, HXSON-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOT972-2
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
2 Days
NCX2220GU,115 Frequently Asked Questions (FAQs)
-
A good PCB layout for the NCX2220GU,115 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, ensure that the output capacitor is within the recommended range (1uF to 10uF), the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum of 10nF decoupling capacitor should be placed close to the device.
-
The maximum ambient temperature for the NCX2220GU,115 is 105°C. However, the device can operate up to 125°C with a derated output current.
-
Yes, the NCX2220GU,115 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is qualified according to the AEC-Q100 standard for automotive applications.
-
To troubleshoot issues with the NCX2220GU,115, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended specifications. Check for any signs of overheating, and ensure that the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact NXP Semiconductors support.
Trust Checks
Community Provided
System Verified
Community Approved
NCX2220GU,115 Overview

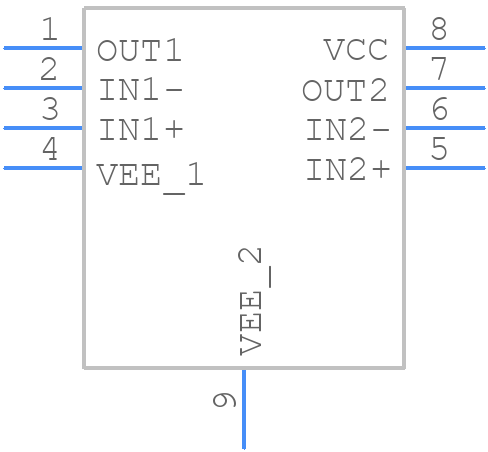

Use the download button to access the NCX2220GU,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCX22,
or try a keyword search, such as Comparators
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
