NDTD1205C - Murata Electronics

Description: Murata Power Solutions NDTD 3W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout ±5V dc

Download NDTD1205C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

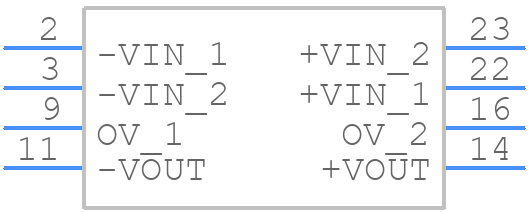

NDTD1205C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

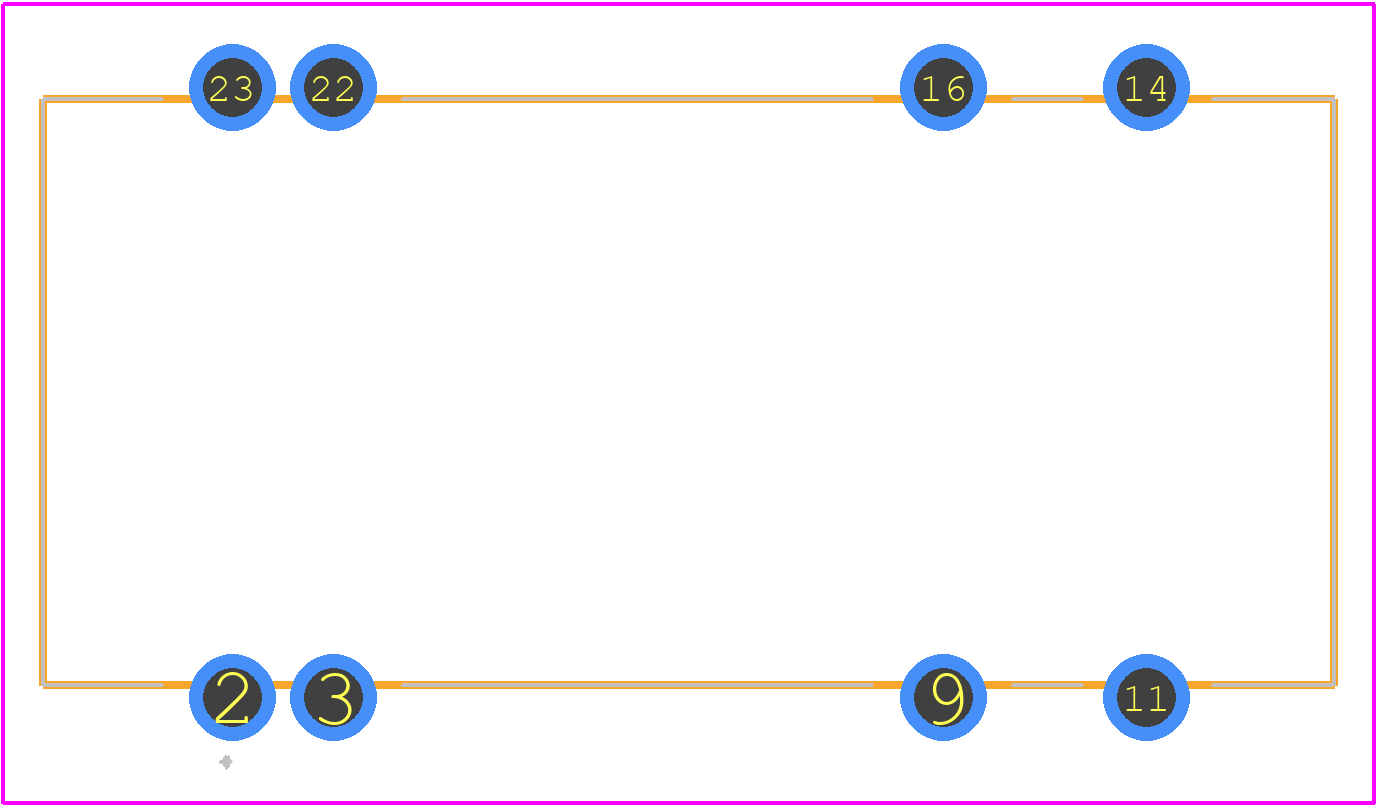

NDTD1205C - Murata Electronics PCB footprint - Other - Other - NDTD1205C-1
click to zoom
3D Models
NDTD1205C - Murata Electronics - 3D model - Other - NDTD1205C-1
click to zoom

NDTD1205C Details

  • Manufacturer Part Number:

    NDTD1205C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ALSO -5V ADDITIONAL OUTPUT VOLTAGE AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    75%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-T8

  • JESD-609 Code:

    e3

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

NDTD1205C Frequently Asked Questions (FAQs)

  • Murata recommends a PCB land pattern with a minimum pad size of 1.2mm x 0.8mm and a solder mask clearance of 0.1mm. A detailed land pattern can be found in the Murata application note 'Recommended Land Pattern for Chip Inductors'.
  • Handle the component by the body, avoiding touching the terminals. Use a vacuum pick-up tool or tweezers to handle the component. Avoid applying excessive force, bending, or twisting during assembly.
  • The maximum allowable voltage for the NTD1205C is 2.5 times the rated voltage (2.5 x 12V = 30V) for a maximum of 10 seconds. Exceeding this voltage may cause damage or degradation to the component.
  • The NTD1205C is rated for operation up to 125°C. However, the component's characteristics may degrade above 85°C. If operation above 85°C is required, consult with Murata or a qualified engineer to ensure the component's reliability.
  • Store the NTD1205C in a dry, clean environment with a relative humidity below 60%. Use a moisture-proof bag or container with a desiccant to prevent moisture absorption. Avoid storing the component in direct sunlight or near heat sources.
