NDTD2405C - Murata Electronics

Description: Isolated DC/DC Converters 3W 24V TO 5V DUAL OUTPUT-1

Download NDTD2405C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

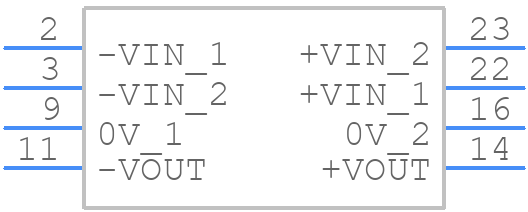

NDTD2405C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

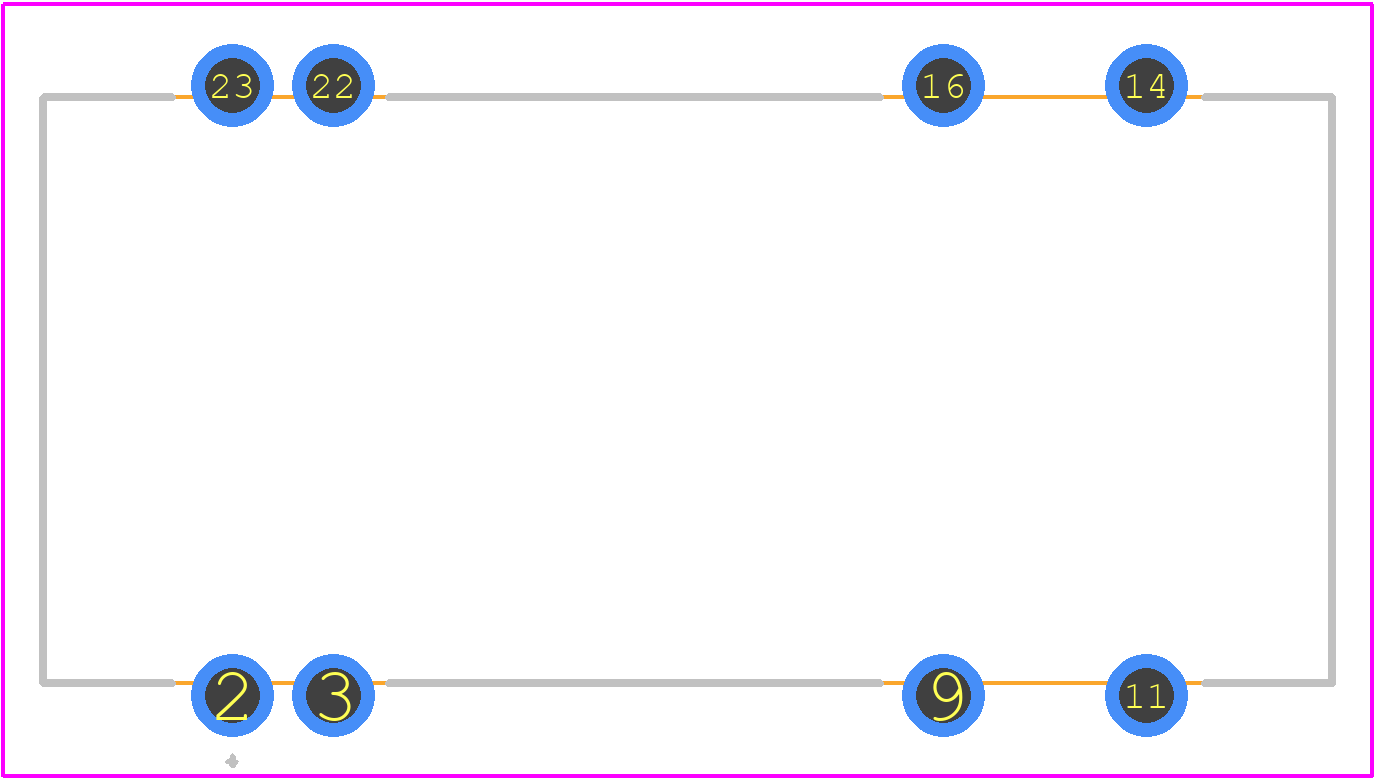

NDTD2405C - Murata Electronics PCB footprint - Other - Other - NDTD2405C-2
click to zoom
3D Models
NDTD2405C - Murata Electronics - 3D model - Other - NDTD2405C-2
click to zoom

NDTD2405C Details

  • Manufacturer Part Number:

    NDTD2405C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ADDITIONAL -5 VOLT OUPTUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    24 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-XDMA-T8

  • JESD-609 Code:

    e3

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8/24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO
