Symbol

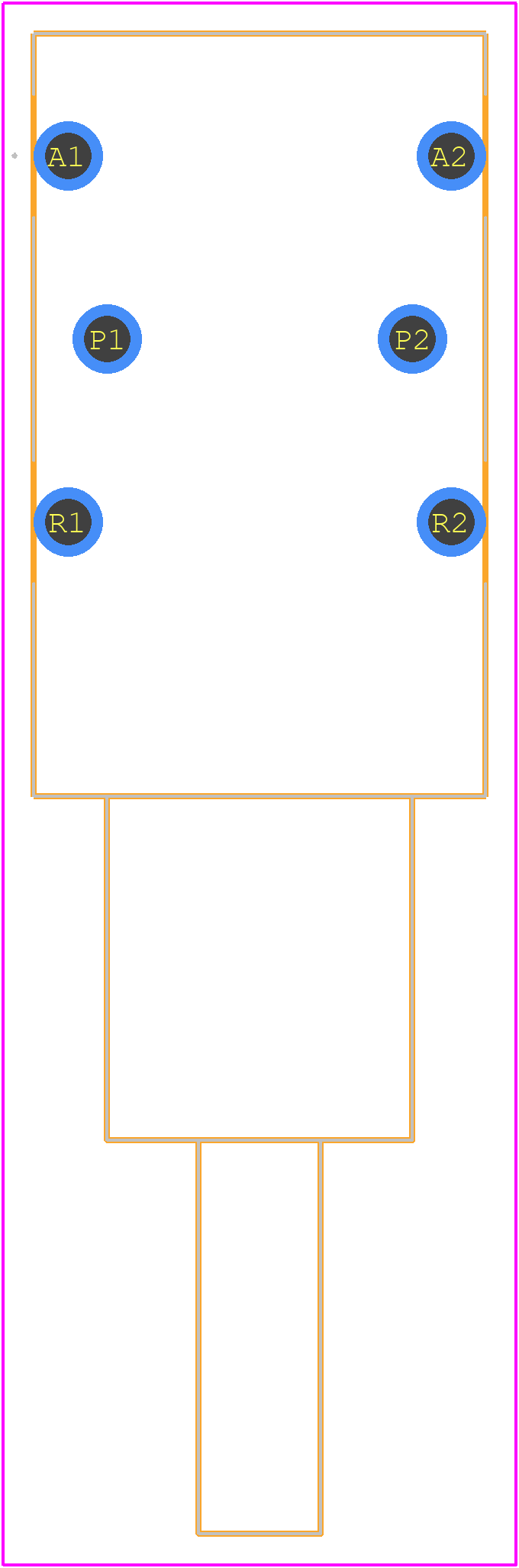

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NE182UEE6AMP
- Part Number NE182UEE6AMP
- Manufacturer LITTELFUSE
- Pin Count 6
- Part Category Switch
- Package Category Other
- Footprint Name Other - NE182UEE6AMP-6
- Released Date Jan 4, 2021
- Last Modified Date Apr 10, 2026 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
NE182UEE6AMP Details
-
Manufacturer Part Number:
NE182UEE6AMP
-
Manufacturer:
Littelfuse Inc
Trust Checks
Expert Contribution
System Verified
Community Approved
NE182UEE6AMP Overview
Use the download button to access the NE182UEE6AMP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NE182,
or try a keyword search, such as Pushbutton Switches
