NE556DBR - Texas Instruments

Description: Timers & Support Products DUAL PRECISION TIMER

Download NE556DBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

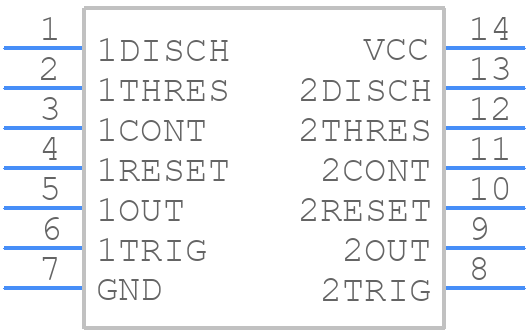

NE556DBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
NE556DBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G14)
click to zoom
3D Models
NE556DBR - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G14)
click to zoom

NE556DBR Details

  • Manufacturer Part Number:

    NE556DBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAN ALSO OPERATE FROM A 15V NOMINAL SUPPLY

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    24 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

NE556DBR Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the NE556DBR is approximately 2 MHz, but this can vary depending on the specific application and external component values.
  • To ensure stable operation in a noisy environment, it's recommended to use decoupling capacitors (e.g., 0.1 uF) between VCC and GND, and to keep the power supply lines as short as possible. Additionally, using a bypass capacitor (e.g., 10 uF) between VCC and GND can help filter out noise.
  • The minimum supply voltage for the NE556DBR is 4.5V, and the maximum supply voltage is 16V. Operating the device outside of this range may affect its performance and reliability.
  • The timing resistors and capacitors for the NE556DBR can be calculated using the formulas provided in the datasheet. For example, the timing period (T) can be calculated as T = 1.38 * R1 * R2 * C, where R1 and R2 are the timing resistors and C is the timing capacitor.
  • Yes, the NE556DBR can be used as a monostable multivibrator by connecting the trigger input (pin 6) to the threshold input (pin 2) and the discharge input (pin 7) to the threshold input (pin 2). This configuration allows the device to generate a single pulse in response to a trigger signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE556DBR Overview

Use the download button to access the NE556DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE556, or try a keyword search, such as Analog Waveform Generation Functions
