The maximum frequency of operation for the NE556/NE4 is typically around 500 kHz to 1 MHz, depending on the specific application and component values. However, it's recommended to consult the datasheet and application notes for specific guidance.
No, the NE556/NE4 is not designed to be used as a voltage regulator. It's a timer IC, and its primary function is to generate timing signals, not regulate voltage. Using it as a voltage regulator can lead to unstable operation and potential damage to the IC.
To ensure stable operation of the NE556/NE4 in noisy environments, it's recommended to use proper decoupling capacitors, bypass capacitors, and shielding. Additionally, consider using a voltage regulator to provide a clean power supply, and ensure that the IC is properly grounded.
No, the NE556/NE4 is not designed to operate with a supply voltage higher than 15V. Exceeding the recommended supply voltage can lead to damage to the IC or unstable operation. If you need to operate at higher voltages, consider using a different timer IC or voltage regulator.
To troubleshoot issues with the NE556/NE4 timer circuit, start by checking the power supply, decoupling capacitors, and component values. Use an oscilloscope to verify the timing signals and ensure that the IC is properly biased. Consult the datasheet and application notes for specific guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NE556NE4 Overview

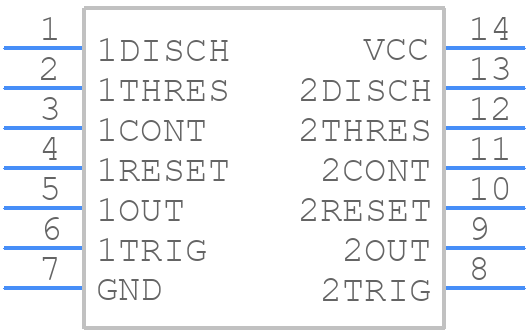

Use the download button to access the NE556NE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE556,
or try a keyword search, such as Analog Waveform Generation Functions
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
