NE567V - Texas Instruments

Description: Communication ICs - Various Tone Decoder

Download NE567V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

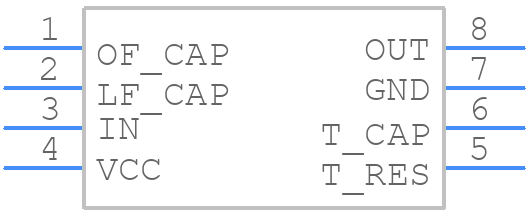

Symbol
NE567V - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
NE567V - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - p(r-pdip-t8)
click to zoom
3D Models
NE567V - Texas Instruments - 3D model - Dual-In-Line Packages - p(r-pdip-t8)
click to zoom

NE567V Details

  • Manufacturer Part Number:

    NE567V

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.59 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Telecom IC Type:

    TONE DECODER CIRCUIT

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

NE567V Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC before applying the input signal to prevent unwanted oscillations.
  • To prevent oscillations when no input signal is present, connect a resistor (typically 1 kΩ) between pins 3 and 4, and a capacitor (typically 10 nF) between pin 3 and ground.
  • The maximum input signal amplitude that the NE567V can handle is approximately 2.5 Vpp (peak-to-peak). Exceeding this may cause distortion or damage to the device.
  • The detection threshold of the NE567V can be adjusted by varying the voltage on pin 5 (VREF). A higher voltage on pin 5 increases the detection threshold, while a lower voltage decreases it.
  • Yes, the NE567V can be used with a single power supply. However, it is recommended to use a split power supply (±VCC) for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE567V Overview

Use the download button to access the NE567V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE567, or try a keyword search, such as PLL or Frequency Synthesis Circuits
