Description:120 MHz Unity Gain Bandwidth; Adjustable Gains from 0 to 400; Adjustable Pass Band; No Frequency Compensation Required; Wave Shaping with Minimal External Components; MIL-STD Processing Available
A good PCB layout for the NE592D14R2G involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure the voltage supply is stable and noise-free. Also, ensure the input signal is within the recommended range and the output is properly terminated.
The maximum power dissipation of the NE592D14R2G is 1.4W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range.
To minimize EMI, use a shielded enclosure, keep the device away from other noise-sensitive components, use a common-mode choke or ferrite bead on the input and output lines, and ensure good grounding and shielding of the PCB.
Store the NE592D14R2G in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, not the leads, and avoid bending or flexing the leads. Use anti-static precautions when handling the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NE592D14R2G Overview

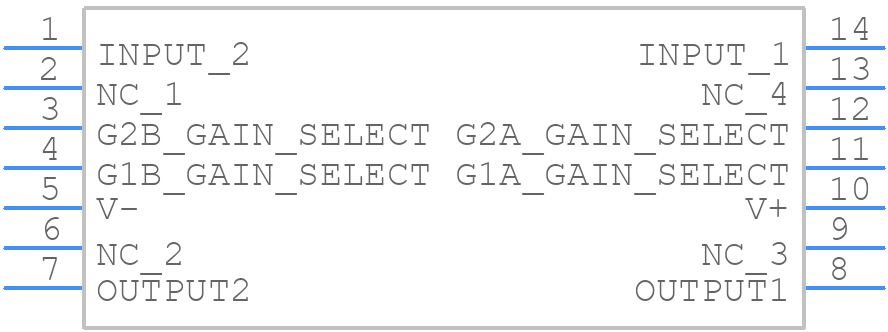

Use the download button to access the NE592D14R2G schematic symbol, PCB footprint, and 3D model.
