- Part Number NE592D8G
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC-8 NB CAST 751-07
- Released Date Aug 25, 2015
- Last Modified Date Sep 19, 2024 2:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
NE592D8G Details
-
Manufacturer Part Number:
NE592D8G
-
Brand Name:
onsemi
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC-8 Narrow Body
-
Pin Count:
8
-
Manufacturer Package Code:
751-07
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
onsemi
NE592D8G Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the NE592D8G is 4.5V to 16V, although it can operate up to 18V with reduced performance.
-
To ensure proper biasing, connect the output stage to a low-impedance load, and use a voltage divider to set the output voltage to half the supply voltage. Additionally, decouple the supply lines with capacitors to reduce noise and oscillations.
-
The maximum power dissipation of the NE592D8G is 1.4W, assuming a junction temperature of 150°C. However, it's recommended to derate the power dissipation to ensure reliable operation.
-
While the NE592D8G can be used as a voltage regulator, it's not recommended due to its limited current capability and lack of built-in voltage regulation features. Instead, consider using a dedicated voltage regulator IC for this purpose.
-
To minimize noise and oscillations, use a low-ESR capacitor for decoupling, keep the input and output traces short and symmetrical, and avoid using long wires or cables that can act as antennas. Additionally, consider adding a ferrite bead or a small inductor in series with the output to reduce high-frequency noise.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
NE592D8G Overview

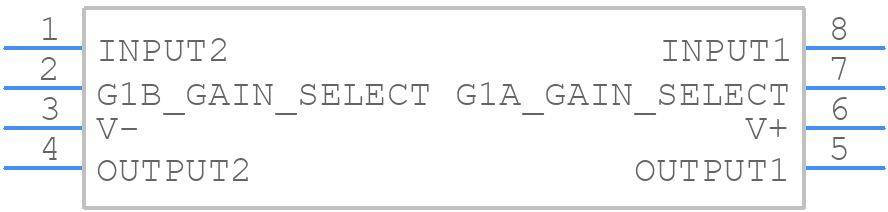

Use the download button to access the NE592D8G schematic symbol, PCB footprint, and 3D model.
